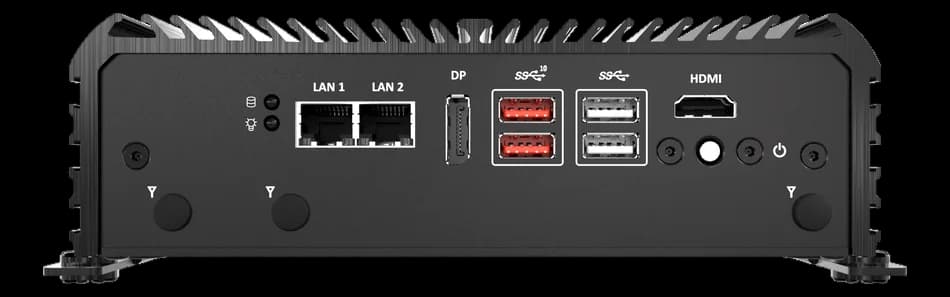

BCO-2000-RYZ-V1605BFanless AMD Ryzen embedded computer with ECC memory and three video outputs
- Manufacturer
- Configurations
- 1 available configurations
BCO-2000-RYZ-V1605B is a fanless embedded computer for panels and operator stations, for installation on a wall, on a desk or on an optional DIN rail: extruded aluminum chassis of 192 × 57.6 × 140 mm and 1.5 kg, certified to CE, FCC and UL.
The AMD Ryzen Embedded V1000/R1000 platform with Radeon Vega 8 graphics is paired with two DDR4 SO-DIMM up to 32 GB with ECC and TPM 2.0 with PTT/fTPM; three video outputs (DisplayPort 1.4, HDMI 2.0b, LVDS), two RJ45, USB 3.2 Gen 2, two RS-232/422/485 serial ports and isolated 4 in / 4 out DIO, with M.2 and Mini PCIe slots for Wi-Fi, Bluetooth, 4G and 5G modules.
At a glance
- CPU generation: AMD R1000
- Processor: Support AMD Ryzen™ Embedded V1000/R1000 Series
- Memory: 2× SO-DIMM DDR4, up to 32 GB ECC/non-ECC
- RAM type: DDR4
- Maximum RAM: 32 GB
Technical specifications
| CPU generation | AMD R1000 |
|---|---|
| Processor | Support AMD Ryzen™ Embedded V1000/R1000 Series |
| Chipset | SoC |
| Graphics | AMD Radeon™ Vega 8 Graphics |
| Memory | 2× SO-DIMM DDR4, up to 32 GB ECC/non-ECC |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 1× internal bay 2.5" SATA HDD (H=9.5 mm)1× M.2 B-key 3042 (SATA)1x M.2 B Key, 3042, Support SATA 1x Internal SIM socket 1x Internal 2.5" SATA HDD Bay (support H=9.5mm) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | HDMI signal connector1× DisplayPort 1.4 (DP++), 3840×2160 @60Hz(3840x2160)1× HDMI 2.0b, 3840×2160 @60Hz(3840x2160)1× LVDS 24-bit dual-channel (up to 1920×1200 @60Hz)(1920x1200)4K HDMI, 4K DP(DisplayPort)1× HDMI 2.0b, 3840×2160 @60Hz(optional · 3840x2160) |
| Ethernet ports | 2× RJ45 |
|---|---|
| USB ports | 4× USB 2.0 (2× internal)2× USB 3.2 Gen 2(10 Gbps) |
| Serial interfaces | 2× RS-232/422/485 |
| Audio | Realtek ALC888S |
| Digital I/O | 4-in/4-out (isolated) |
| Other I/O | 5x WiFi Antenna Holes, 1x 4-Pin FAN Connector, 1x RTC battery by cable |
| Wireless | 4G/LTE5GBluetoothWi-Fi |
|---|
| Expansion | 1× M.2 B-key (PCIe x1 & USB 3.0, 3042/3052, SATA, USIM), 4G/5G1× Mini PCIe full-size (for expansion modules)2× universal I/O bracket (Mini PCIe/M.2 interface) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 12 V DC |
| Mounting | Wall MountDIN Rail Mount(optional) |
|---|---|
| Dimensions | 192 × 57.6 × 140 mm |
| Weight | 1.5 kg |
| Chassis material | Aluminum, metal(extruded) |
| Cooling | Fanless |
|---|---|
| Storage temperature | -30–85 °C |
| Certifications | CEFCCUL |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| BCO-2000-RYZ-R1606G |
