AFL4-W121-ADLP12.1" fanless panel PC with pcap touch and IP64 rating
- Manufacturer
- Configurations
- 6 available configurations

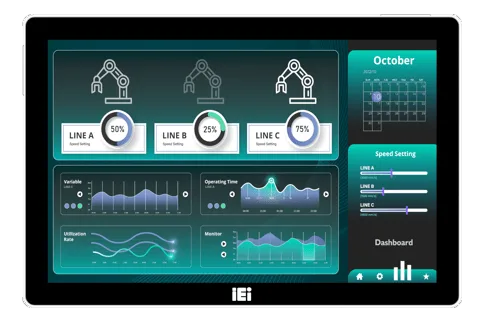

AFL4-W121-ADLP is an industrial panel PC with a 12.1" display and a pcap touchscreen, intended for HMI and automation use in harsh environments. The aluminum and metal chassis supports desktop stand, VESA and wall mounting, and hosts Intel Core i3, i5 and i7 platforms.
The absence of fans and the IP64 protection rating make it suited to contexts with dust and water splashes. The display reaches 450 cd/m² with a contrast ratio of 1200 and a backlight of 50,000 h.
The AFL4-W121-ADLP family comprises 6 configurations that vary by CPU generation (12th gen Alder Lake or 13th gen Raptor Lake); an example part number is AFL4-W121-ADLP-i3/8G-R11.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 12th gen (Alder Lake)
- Processor: 12/13th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P/Raptor Lake-P)
- CPU frequency: 4.5–4.8 GHz
- CPU TDP: 28 W
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake) |
| Processor | 12/13th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P/Raptor Lake-P) |
| CPU frequency | 4.5–4.8 GHz |
| CPU TDP | 28 W |
| Watchdog | Yes(sec · 1-255) |
| CPU cores | 8–14 |
| Memory | Dual channel On board LPDDR4X 8G GB |
|---|---|
| RAM type | LPDDR4x |
| Maximum RAM | 32 GB |
| Display size | 12.1 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | 400-599 high cd/m² |
| Resolution | 1280x800 |
| Contrast ratio | 1200:1 |
| Viewing angle | 170°/170° |
| Display colors | 16.2M |
| Backlight MTBF | 50000 hours h |
| Video outputs | 1× HDMI1× HDMI (fino a 3840×2160 @30Hz)(3840x2160) |
| Ethernet ports | LAN2: Intel I226-LM 2.5GbE (Intel AMT)2× LAN (Intel I225V 2.5GbE) |
|---|---|
| USB ports | 2× USB 3.2 Gen11× USB 2.02× USB 3.2 Gen22× USB 3.2 Gen1x1 |
| Serial interfaces | 2× RS-232 (DB9)2× RS-232/422/485 (DB9) |
| Audio | Realtek ALC888SAMP 1.2W (internal speaker) |
| Wireless | Wi-FiBluetooth |
|---|
| Expansion | 1× M.2 M-key 2280 (PCIE Gen4 x4)1× M.2 M-key 2242 (PCIE Gen4 x4) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Power consumption | 44.52 W |
| Mounting | VESA MountWall MountDesktop / Stand |
|---|---|
| Dimensions | 197.8 × 295.72 × 57.8 mm |
| Weight | 2.44 kg |
| Chassis material | alluminio, metallo |
| Chassis color | Silver+Black |
| IP rating | Front IP64 |
|---|---|
| Cooling | Fanless |
| Storage temperature | 20–60 °C |
| Certifications | CEUKCAFCC |
|---|
| Operating systems | Windows 11 IoTLinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Processor | Memory(GB) |
|---|---|---|
| AFL4-W121-ADLP-i3/8G-R11 | — | — |
| AFL4-W121-ADLP-i5/8G-R11 | — | — |
| AFL4-W121-ADLP-i7/8G-R10 | — | — |
| AFL4-W121-ADLP-Ri3E/8G-R11 | Intel® Core™ i3-1320PE on-board processor | 8GB LPDDR4× on-board |
| AFL4-W121-ADLP-Ri5E/8G-R11 | Intel® Core™ i5-1340PE on-board processor | 8GB LPDDR4× on-board |
| AFL4-W121-ADLP-Ri7E/16G-R11 | Intel® Core™ i7-1370PE on-board processor | Dual channel On board LPDDR4X 8G |
