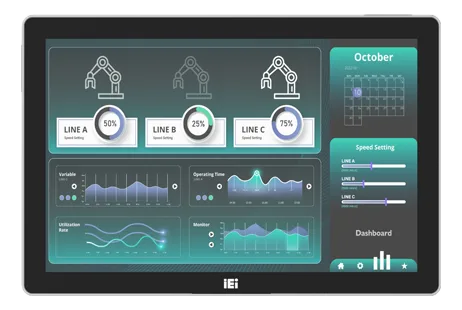

AFL4-W12-EHL12.1" fanless Panel PC with capacitive touch and IP64 protection
- Manufacturer
- Configurations
- 1 available configurations
AFL4-W12-EHL is an industrial Panel PC with a 12.1" display and capacitive touchscreen, intended for HMI and supervision use in environments where protection from external agents and an absence of fans are required. Mounting is provided in desk/stand, VESA and wall versions, with 12 V DC power input.
What distinguishes it are the fanless construction combined with the IP64 protection rating and the display brightness of 500 cd/m² with a contrast ratio of 1200. The front surface has 7H hardness and the backlight declares a life of 50000 h.
The family comprises a single configuration, identified by the example part number AFL4-W12-EHL-J1/8G-R11.
At a glance
- CPU class: Intel Celeron/Pentium
- Processor: Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
- CPU frequency: 2.6 GHz
- CPU TDP: 10 W
- Memory: Upgrading the memory from DDR3L to LPDDR4× not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system, cutting output driver power by 60% from 1.5V t
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W |
| CPU frequency | 2.6 GHz |
| CPU TDP | 10 W |
| Memory | Upgrading the memory from DDR3L to LPDDR4× not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system, cutting output driver power by 60% from 1.5V ton-board dual-channel 8GB LPDDR4x GBDual channel 8GB LPDDR4× on board GB(LPDDR4x) |
|---|---|
| RAM type | LPDDR4xDDR3L |
| Maximum RAM | 16 GB |
| Storage | 1× M.2 M key 2280 (PCIe Gen3 x2)1× M.2 2242 M-key (PCIe Gen3 x1 or SATA)(M.2-M) |
|---|
| Display size | 12.1 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | 400-599 high cd/m² |
| Resolution | 1280x800 |
| Contrast ratio | 1200:1 |
| Viewing angle | 170°/170° |
| Pixel pitch | 0.1695 x 0.1695 mm |
| Display colors | 16.7M |
| Backlight MTBF | 50000 hours h |
| Touch controller | EETI EXC 81 Series |
| Surface hardness | 7H |
| Video outputs | 1× HDMI1× HDMI (fino a 3840×2160 @30Hz)(3840x2160)HDMI 1.4b (4096×2160 @30Hz)(4096x2160) |
| USB ports | 2× USB 3.2 Gen2x1 (Type-A)2× USB 3.2 Gen13× USB 2.0 |
|---|---|
| Serial interfaces | 2× RS-232/422/485 (DB9)2× RS-232 (DB9) |
| Audio | Realtek ALC888S |
| Wireless | Wi-FiBluetooth |
|---|
| Expansion | 1× M.2 M-key 2280 (PCIE Gen3 x2) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Power consumption | 37.56 W |
| Mounting | VESA MountWall MountDesktop / Stand |
|---|---|
| Dimensions | 197.8 × 47.4 × 295.72 mm |
| Weight | 2.04 kg |
| Chassis material | alluminio(die cast) |
| IP rating | Front IP64 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | UKCAFCCCE |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
