AFL4-W133-ADLP13.3" fanless Panel PC with PCAP touch and IP64 protection
- Manufacturer
- Configurations
- 6 available configurations

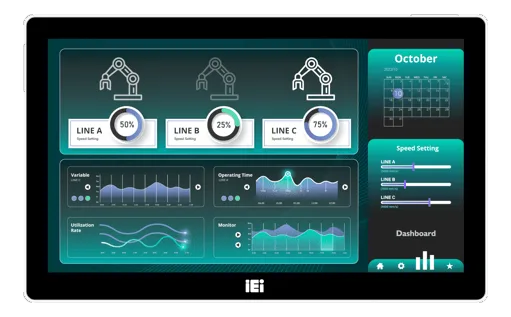

AFL4-W133-ADLP is an industrial Panel PC with a 13.3" display and capacitive (PCAP) touchscreen, designed for HMI stations and control applications in demanding environments. Mounting is provided in desk, VESA or wall versions, with an aluminium and metal frame.
The IP64 protection rating and fanless cooling define its profile for use in areas with dust and splashes. The brightness of 350 cd/m² and the backlight with an MTBF of 50000 h complete its display.
The family is available with 12th generation (Alder Lake) or 13th generation (Raptor Lake) CPUs; example configuration: AFL4-W133-ADLP-i3/8G-R10.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 12th gen (Alder Lake)
- Processor: Support 12th/13th Generation Intel® Core™ i Processors (Alder Lake-P & Raptor Lake-P)
- CPU frequency: 4.5–4.8 GHz
- CPU TDP: 28 W
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake) |
| Processor | Support 12th/13th Generation Intel® Core™ i Processors (Alder Lake-P & Raptor Lake-P) |
| CPU frequency | 4.5–4.8 GHz |
| CPU TDP | 28 W |
| Watchdog | Yes(sec · 1-255) |
| CPU cores | 8–14 |
| Memory | Dual channel On board LPDDR4X 8G GB |
|---|---|
| RAM type | LPDDR4x |
| Maximum RAM | 32 GB |
| Display size | 13.3 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1920x1080 FHD |
| Contrast ratio | 800:1 |
| Viewing angle | 170°/170° |
| Display colors | 16.2M |
| Backlight MTBF | 50000 hours h |
| Video outputs | 1× HDMI1× HDMI (fino a 3840×2160 @30Hz)(3840x2160) |
| Ethernet ports | 2× LAN (Intel I225V 2.5GbE)LAN2: Intel I226-LM 2.5GbE (Intel AMT) |
|---|---|
| USB ports | 2× USB 3.2 Gen22× USB 3.2 Gen11× USB 2.02× USB 3.2 Gen1x1 |
| Serial interfaces | 2× RS-232/422/485 (DB9)2× RS-232 (DB9) |
| Audio | Realtek ALC888SAMP 1.2W (internal speaker) |
| Wireless | BluetoothWi-Fi |
|---|
| Expansion | 1× M.2 M-key 2280 (PCIE Gen4 x4)1× M.2 M-key 2242 (PCIE Gen4 x4) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Power consumption | 45.84 W |
| Mounting | Desktop / StandVESA MountWall Mount |
|---|---|
| Dimensions | 203.33 × 327.7 × 57.8 mm |
| Weight | 2.56 kg |
| Chassis material | alluminio, metallo |
| Chassis color | Silver+Black |
| IP rating | Front IP64 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | FCCUKCACE |
|---|
| Operating systems | Windows 11 IoTWindows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Processor | Memory(GB) |
|---|---|---|
| AFL4-W133-ADLP-i3/8G-R10 | — | — |
| AFL4-W133-ADLP-i3/8G-R11 | — | — |
| AFL4-W133-ADLP-i5/8G-R11 | — | — |
| AFL4-W133-ADLP-Ri3E/8G-R11 | Intel® Core™ i3-1320PE on-board processor | 8GB LPDDR4× on-board |
| AFL4-W133-ADLP-Ri5E/8G-R11 | Intel® Core™ i5-1340PE on-board processor | 8GB LPDDR4× on-board |
| AFL4-W133-ADLP-Ri7E/16G-R11 | Intel® Core™ i7-1370PE on-board processor | Dual channel On board LPDDR4X 8G |
