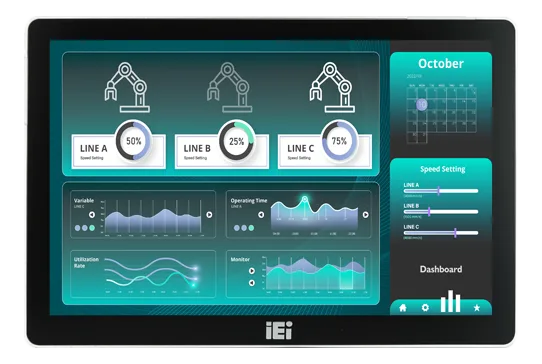

AFL4-W10-EHL10.1" fanless capacitive touch Panel PC with IP64
- Manufacturer
- Configurations
- 1 available configurations
AFL4-W10-EHL is an industrial Panel PC with a 10.1" display and capacitive (PCAP) touchscreen, intended for HMI and operator stations in industrial environments. Mounting is provided in desk, VESA or wall versions, with Linux, Windows 10 IoT and Windows 11 IoT operating systems.
The fanless design eliminates moving parts in heat dissipation, while the IP64 rated front protects against dust and water jets. The display surface has 7H hardness and the backlight declares a life of 30000 h.
The family is declined into CPU and memory configurations; example part number: AFL4-W10-EHL-J1/8G-R11.
At a glance
- CPU class: Intel Celeron/Pentium
- Processor: Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
- CPU frequency: 2.6 GHz
- CPU TDP: 10 W
- Memory: Upgrading the memory from DDR3L to LPDDR4× not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system, cutting output driver power by 60% from 1.5V t
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W |
| CPU frequency | 2.6 GHz |
| CPU TDP | 10 W |
| Memory | Upgrading the memory from DDR3L to LPDDR4× not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system, cutting output driver power by 60% from 1.5V ton-board dual-channel 8GB LPDDR4x GBDual channel 8GB LPDDR4× on board GB(LPDDR4x) |
|---|---|
| RAM type | LPDDR4xDDR3L |
| Maximum RAM | 16 GB |
| Storage | 1× M.2 M key 2280 (PCIe Gen3 x2)1× M.2 2242 M-key (PCIe Gen3 x1 or SATA)(M.2-M) |
|---|
| Display size | 10.1 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1280x800 |
| Contrast ratio | 900:1 |
| Viewing angle | 170°/170° |
| Pixel pitch | 0.1695 x 0.1695 mm |
| Display colors | 16.7M |
| Backlight MTBF | 30000 hours h |
| Touch controller | EETI EXC 81 Series |
| Surface hardness | 7H |
| Video outputs | 1× HDMI1× HDMI (fino a 3840×2160 @30Hz)(3840x2160) |
| Ethernet ports | 2× LAN (Intel I225V 2.5GbE) |
|---|---|
| USB ports | 3× USB 2.02× USB 3.2 Gen12× USB 3.2 Gen2x1 (Type-A) |
| Serial interfaces | 2× RS-232/422/485 (DB9)2× RS-232 (DB9) |
| Audio | Realtek ALC888S |
| Other I/O | 1 x 12V DC jack, 1 x Power button, 1 x Reset button, 1 x AT/ATX switch |
| Wireless | Wi-FiBluetooth |
|---|
| Expansion | 1× M.2 M-key 2280 (PCIE Gen3 x2) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Power consumption | 38.33 W |
| Mounting | VESA MountDesktop / StandWall Mount |
|---|---|
| Dimensions | 166.2 × 40.65 × 243.56 mm |
| Weight | 1.37 kg |
| Chassis material | alluminio, acciaio(die cast) |
| Chassis color | Silver+Black |
| IP rating | Front IP64 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | CEUKCAFCC |
|---|
| Operating systems | Windows 11 IoTWindows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AFL4-W10-EHL-J1/8G-R11 |
