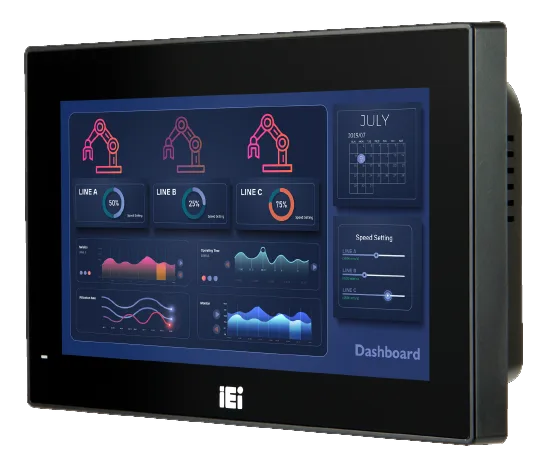

AFL3-W07A-AL-R10IEI fanless Panel PC with Apollo Lake CPU and wide-range power input
- Manufacturer
The AFL3-W07A-AL-R10 is a fanless industrial Panel PC based on an Intel Celeron/Pentium Apollo Lake platform, intended for HMI use and operator stations in industrial environments. It supports Linux, Windows and Windows 10 IoT operating systems, with integrated Wi-Fi and Bluetooth connectivity.
The fanless design eliminates moving parts for heat dissipation, with a CPU whose TDP is between 6 and 10 W. Power input accepts an extended 9~30 V input, while the mounting options comprise panel, VESA, wall and desk configurations, to suit different installations.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Apollo Lake
- Processor: Intel® Celeron N3350 (2M Cache, up to 2.4 GHz) TDP 6W
- CPU frequency: 2.3–2.4 GHz
- CPU TDP: 6–10 W
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Apollo Lake |
| Processor | Intel® Celeron N3350 (2M Cache, up to 2.4 GHz) TDP 6W |
| CPU frequency | 2.3–2.4 GHz |
| CPU TDP | 6–10 W |
| Memory | one 204-pin 1866MHz DDR3L DIMMs support up to 8GB1*4GB DDR3L GBOne 4GB DDR3L 204-pin SO-DIMM memory pre-installed GB(default) |
|---|---|
| RAM type | DDR3L |
| Maximum RAM | 8 GB |
| Storage | 1× M.2 B+M key PCIe 2242 (USB/SATA signal)*1× 2.5" SATA 3Gb/s HDD bay (optional one of the two) |
|---|
| Display size | 7 ″ |
|---|---|
| Touchscreen | PCAP(USB) |
| Brightness | 400-599 high cd/m² |
| Resolution | 1366x7681024x768 XGA1024x600 |
| Contrast ratio | 700:1 |
| Viewing angle | 160 / 160170 / 160 |
| Pixel pitch | 0.1432–0.1506 mm |
| Display colors | 16.7M |
| Backlight MTBF | 20000 (LED backlight) h |
| Touch controller | EETI 80H60EXC80H60(EETI)EXC3160(EETI)EXC3146(EETI) |
| Video outputs | 1× HDMI |
| Ethernet ports | 2× PCIe GbE by Intel i211 |
|---|---|
| USB ports | 2× USB 2.02× USB 3.2 Gen1x12× USB 3.2 Gen1 |
| Serial interfaces | 1× RS-232/422/485 by RJ45 (Support Auto Flow Control over RS-485)1× RS-232/422/485 (DB9)1× RS-232 (DP9) |
| Audio | Realtek ALC888Sdigital microphone1× Line-outALC269 |
| Camera | 2-megapixel with low light function, digital microphone |
| Other I/O | 1 x AT/ATX Switch · 1 x Clear CMOS · 1 x Power Switch · 1 x Reset Button · 1 x Power In |
| Wireless | BluetoothWi-Fi |
|---|
| Expansion | A+E-key 2230 slot (PCIe/USB signal)(M.2-E) |
|---|
| Power input | 9–30 V |
|---|
| Mounting | VESA MountDesktop / StandWall MountPanel Mount |
|---|---|
| Cutout dimensions | 182 × 111 mm |
| Weight | 0.73 kg |
| Chassis material | plastica |
| Chassis color | Black(Black C) |
| IP rating | Front IP65 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | FCCCE |
|---|
| Operating systems | Windows 10 IoTLinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
