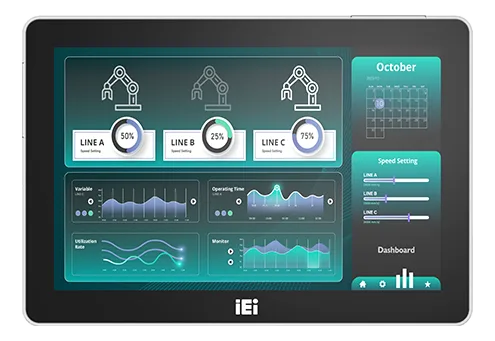

AFL4-W08-EHL8" fanless Panel PC with PCAP touch and 420 cd/m² display
- Manufacturer
- Configurations
- 1 available configurations
AFL4-W08-EHL is an industrial Panel PC with an 8" display and capacitive (PCAP) touchscreen, intended for the operator interface in production, automation and HMI environments. The Intel® Celeron® J6412 processor with LPDDR4x RAM expandable up to 16 GB supports Linux, Windows 10 IoT and Windows 11 IoT. Mounting is provided in stand/desk, VESA or wall versions.
The fanless design eliminates moving parts; the IP64 rated front protects against dust and water splashes. The display reaches 420 cd/m² with a contrast ratio of 800 and a pixel pitch of 0,135 mm.
The family is configurable, with an example part number AFL4-W08-EHL-J1/8G-R10.
At a glance
- CPU class: Intel Celeron/Pentium
- Processor: Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
- CPU frequency: 2.6 GHz
- CPU TDP: 10 W
- RAM type: LPDDR4x
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W |
| CPU frequency | 2.6 GHz |
| CPU TDP | 10 W |
| Memory | Dual channel 8GB LPDDR4× on board GB(LPDDR4x)Dual channel on board LPDDR4× 8G GB(LPDDR4x) |
|---|---|
| RAM type | LPDDR4x |
| Maximum RAM | 16 GB |
| Storage | 128G eMMC(optional) |
|---|
| Display size | 8 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | 400-599 high cd/m² |
| Resolution | 1280x800 |
| Contrast ratio | 800 : 1 |
| Viewing angle | 170° / 170° |
| Pixel pitch | 0.135 x 0.135 mm |
| Display colors | 16.7 M |
| Backlight MTBF | 30000 hours h |
| Touch controller | EETI EXC 81 Series |
| Video outputs | 1× HDMIHDMI 1.4b (4096×2160 @30Hz)(4096x2160)1× HDMI (fino a 3840×2160 @30Hz)(3840x2160) |
| Ethernet ports | LAN1: Intel I226-V 2.5GbE1× LAN (Intel I225V 2.5GbE) |
|---|---|
| USB ports | 1× USB 2.02× USB 3.2 Gen2 (Type-A) |
| Serial interfaces | 2× RS-232/422/485 (DB9) |
| Audio | Realtek ALC888S |
| Other I/O | 1 x AT/ATX Switch · 1 x DC Input Jack · 1 x Reset Button · 1 x Power Switch |
| Wireless | Wi-FiBluetooth |
|---|
| Expansion | 1× M.2 M-key 2242 (PCIE Gen3 x1 + SATA) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Power consumption | 36.72 W |
| Mounting | Wall MountVESA MountDesktop / Stand |
|---|---|
| Dimensions | 138.9 × 36.78 × 201.4 mm |
| Weight | 0.98 kg |
| Chassis material | alluminio, acciaio(die cast) |
| Chassis color | Silver + Black |
| IP rating | Front IP64 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | UKCAFCCCE |
|---|
| Operating systems | Windows 11 IoTWindows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AFL4-W08-EHL-J1/8G-R10 |
