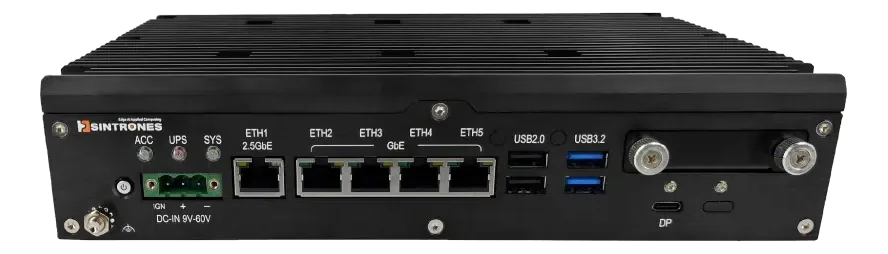

VBOX-3631Rugged in-vehicle edge AI computer, fanless aluminium chassis
- Manufacturer
- Configurations
- 1 available configurations
VBOX-3631 is the Sintrones in-vehicle edge AI computer on an aluminium alloy chassis, designed for rolling stock, fleet management and mobile automation, with wall mount installation and cabling gathered on the front and rear panels.
What sets it apart is the certification package — CE, FCC, UKCA, E-Mark, EN 62368-1, EN 50155 and EN 45545 fire — combined with the Intel AI Boost NPU, which keeps inference on board the vehicle without a discrete GPU, and the IP40 protection rating. The operating system is Windows 11 IoT or Linux.
Available configurations: VBOX-3631-M12X with M12 X-code connectors. The processor can be chosen between Intel Core 3 304 (C3-304) up to 4.3 GHz, Core 5 320 (C5-320) up to 4.6 GHz and Core 7 350 (C7-350) up to 4.8 GHz.
At a glance
- MIL-STD-810H for shock and vibration
- Integrated TPM 2.0
- Two M.2 2280 slots for NVMe
- Optional BBU up to 5 minutes
- Optional M.2 Wi-Fi and GNSS modules
Technical specifications
| Processor | Intel® Core™ 7 350 up to 4.8 GHz (P-Core)(optional)Intel® Core™ 3 304 up to 4.3 GHz (P-Core)(optional)Intel® Core™ 5 320 up to 4.6 GHz (P-Core)(optional) |
|---|---|
| Graphics | Intel® Graphics |
| AI module | Intel AI Boost (NPU) |
| Memory | 1x DDR5-6400 SO-DIMM up to 64 GB (In Band ECC Support) |
|---|
| Storage | 2× M.2 2280 Key M for NVMe SSDM.2 2280× NVMe SSD 256GB~2TB, -40°C ~ 85°C(optional) |
|---|
| Video outputs | 1x HDMI 1x DVI-D Single-Link 1x USB Type-C DP output |
|---|
| Ethernet ports | 4× GbE from Marvell Ethernet Switch via RJ-452× GbE via M12 X-code(optional)1x 2.5GbE from Intel I226-LM via RJ-45 or M12 X-code(optional) |
|---|---|
| USB ports | 2× USB 3.2, 2× USB 2.0 |
| Serial interfaces | 2× COM support RS-232/422/485× ports |
| Audio | 1× Line-out, 1× Mic-in |
| Digital I/O | 6× DI (0-60VDC), 4× DO (12VDC/100mA), 1× Isolated DO |
| CAN bus | 2× CAN FD |
| Wireless | Wi-Fi(optional)GPS/GNSS(optional) |
|---|
| Expansion | 2× M.2 3042/3052* Key B for WWAN with dual Nano SIM support · One Cover for Expansion Simplifies Module Installation |
|---|
| Power input | 9–60 V |
|---|---|
| Ignition management | Ignition detection, Smart Power Management |
| Battery / UPS | Removable front tray for RTC coin cell battery |
| Mounting | Wall Mount(optional) |
|---|---|
| Dimensions | 250× 160 x 55 mm (9.85 x 6.30 x 2.17 in.) |
| Chassis material | Aluminum Alloy with Fanless Design |
| Operating temperature | -40–70 °C |
|---|---|
| IP rating | IP40 |
| Certifications | EN 45545 fireEN 50155E-MarkCEEN 62368-1UKCAFCC |
|---|
| Operating systems | Windows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| VBOX-3631-M12X |
