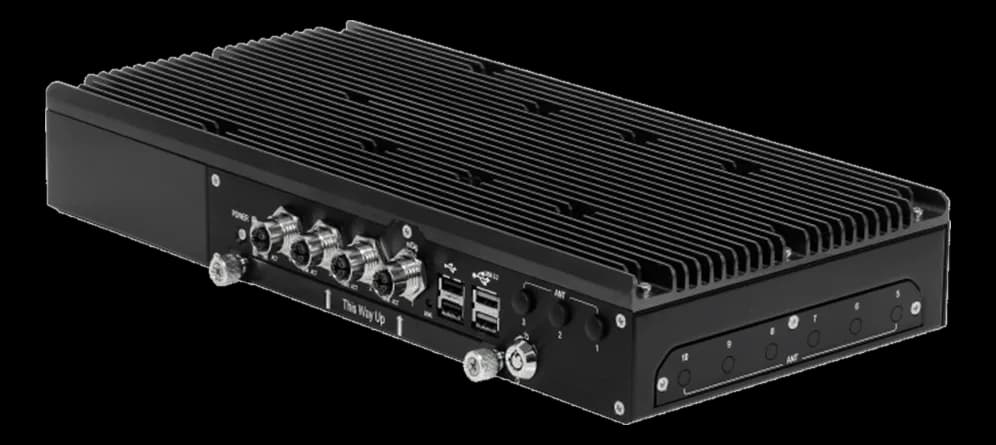

VBOX-3630RP-M12XRail embedded computer with Intel Tiger Lake, EN 50155 certified
- Manufacturer
VBOX-3630RP-M12X is a Sintrones embedded computer for processing nodes on vehicles and in rail applications, with a compact profile and EN 50155, EN 45545, CE and FCC certifications.
The 11th generation Intel Tiger Lake platform (Core i3/i5/i7 or Celeron/Pentium) with integrated graphics is paired with DDR4 up to 64 GB and two 2.5" SATA bays; four GbE ports, four RS-232/422/485 serial ports, six DI and four DO, HDMI, DP and DVI-D outputs and M.2 and Mini-PCIe expansion. DC power input.
At a glance
- CPU generation: 11th gen (Tiger Lake)
- Memory: DDR4, max 64 GB
- RAM type: DDR4
- Maximum RAM: 64 GB
- USB ports: 2× USB 3.2
Technical specifications
| CPU generation | 11th gen (Tiger Lake) |
|---|---|
| Processor | Intel Core i5-1145G7E(optional)Intel Core i7-1185G7E(optional)Intel Celeron 6305E(optional)Intel Core i3-1115G4E(optional) |
| Chipset | SoC |
| Graphics | Intel Graphics |
| Memory | DDR4, max 64 GB |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 2x 2.5″ Drive Bay for SATA Type(2.5-SATA) |
|---|
| Video outputs | 1× DVI-D2× HDMI1× DP(DisplayPort) |
|---|
| Ethernet ports | 4× GbE |
|---|---|
| USB ports | 2× USB 3.2 |
| Serial interfaces | 4× RS-232/422/485 |
| Audio | 1× line-out1× mic-in |
| Digital I/O | 6× DI + 4× DO(in)6× DI + 4× DO(out) |
| Expansion | 1× combo (1× M.2 3042/52 Key B oppure 1× mPCIe full-size)1× mPCIe full-size (solo USB)(Mini-PCIe) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 24–110 V |
| Dimensions | 365 × 55 × 165 mm |
|---|---|
| Weight | 3.8 kg |
| Operating temperature | -40–70 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certified market sectors | Railway |
|---|---|
| Certifications | EN 50155CEFCCEN 45545 fire |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
