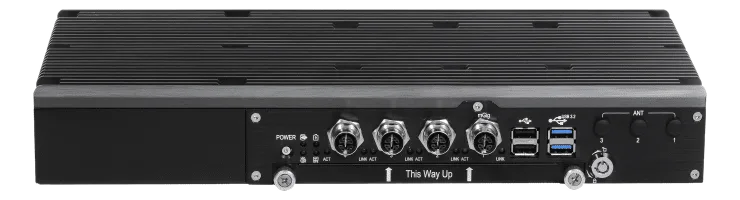

VBOX-3630R-M12XWall mount rail embedded computer, EN 50155 and EN 45545 certified
- Manufacturer
VBOX-3630R-M12X is a Sintrones embedded computer for fixed installations in rail applications and in the plant, with wall mounting: an aluminum chassis and EN 50155 and EN 45545 certifications.
DDR4 memory reaches 64 GB on two SO-DIMM; storage combines an M.2 NVMe SSD and two SATA bays with RAID 0/1, the four LAN ports include one 2.5 GbE and the set includes four RS-232/422/485 serial ports, six DI and four DO and HDMI, DP and DVI-D outputs. Short-circuit protected DC input and an optional battery.
At a glance
- Memory: 2× SO-DIMM DDR4-3200, max 64 GB
- RAM type: DDR4
- Maximum RAM: 64 GB
- Storage: 2× bay 2.5″ SATA (HDD/SSD), RAID 0/1
- USB ports: 2× USB 2.0
Technical specifications
| Graphics | Intel® Iris® Xe Graphics / Intel® UHD Graphics |
|---|
| Memory | 2× SO-DIMM DDR4-3200, max 64 GB |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 2× bay 2.5″ SATA (HDD/SSD), RAID 0/11× M.2 2280 Key M (SSD NVMe)(M.2-M) |
|---|
| Video outputs | 2× HDMI1× DVI-D* (4 display indipendenti)4096×2304 @60Hz(4096x2304 · DisplayPort)1× DP(DisplayPort)4096×2304 @60Hz(4096x2304 · HDMI) |
|---|
| Ethernet ports | 3× GbE (Intel)1× 2.5GbE (Intel), 10/100/1000/2500BASE-T |
|---|---|
| USB ports | 2× USB 2.02× USB 3.2 Gen 2(10 Gbps) |
| Serial interfaces | 4× RS-232/422/485 (auto direction control) |
| Audio | 1× line-out1× mic-in (1× line-in opzionale)(optional) |
| Digital I/O | 2× uscite DC (12V/1A)(bidir)6× DI (5–60V) + 4× DO (5V, 100mA)(in)6× DI (5–60V) + 4× DO (5V, 100mA)(out) |
| Expansion | 1× M.2 2230 Key E + 2× M.2 3042/52 Key B |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 24–110 V |
| Battery / UPS | Optional Battery Kit for 10 Mins Operating (Operating Temp. 0~60°C) |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 165 × 55 × 365 mm |
| Weight | 3.8 kg |
| Chassis material | alluminio |
| Operating temperature | -40–70 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certified market sectors | Railway |
|---|---|
| Certifications | EN 45545 fireFCCEN 50155CE |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
