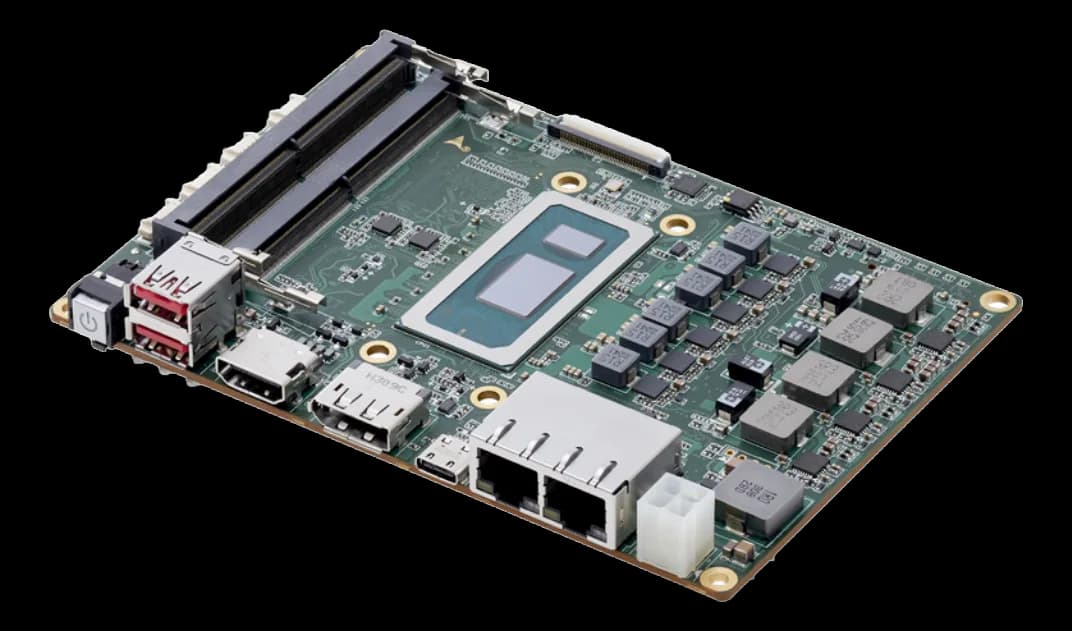

SBC35-RPL3.5" SBC with 13th Gen Intel Core for industrial machines
- Manufacturer
- Configurations
- 1 available configurations
SBC35-RPL is a 3.5" form factor board, 146 mm x 102 mm, intended for industrial machines, controllers and vision systems where the onboard volume is that of compact mechanics, not of a full-size motherboard.
The usage profile is industrial at controlled temperature: operating range 0~60 °C and FCC and CE markings. On the software side, support covers Windows 10 IoT, Windows 11 IoT and Linux; local storage goes through a SATA port, the Type-C interface is USB 3.2.
Catalogue configurations for this family: 91-47300-00XX, 58-10515-0000 and 58-10514-0000.
At a glance
- Dual-channel DDR5 memory up to 64 GB
- 8 digital inputs and 8 outputs
- TPM 2.0 as an option
- Two RS-232/422/485 serials on pin header
Technical specifications
| Processor | 13th Gen Intel® Core™ i7/i5/i3/Celeron® |
|---|
| Memory | Dual-channel DDR5 SO-DIMMs 4800MHz, up to 64GB |
|---|
| SATA ports | 1× SATA 6Gb/s ports w/ 5V SATA power |
|---|
| Video outputs | 1 eDP (co-lay LVDS by option)1 DisplayPort1 HDMI |
|---|
| Digital I/O | 8 DI and 8 DO |
|---|---|
| Audio | 1× line-in, 1× line-out, MIC-in |
| Ethernet ports | 1× Intel® I225-V, 2.5Gps / 1Gbps/ 100Mbps / 10Mbps1x Intel® I219-V, 1Gbps/ 100Mbps / 10Mbps |
| Serial interfaces | 2× RS-232 pin headers2x RS-232/422/485 pin headers |
| USB ports | 2× USB 3.2 Gen 2x1 ports (10Gbps) (rear I/O)3x USB 2.0 via headers (max. 5V, 0.5A/ each port)1x Type-C(3.2) |
| Form factor | 3.5" SBC |
|---|
| Supply voltage | 12V-24V |
|---|
| Dimensions | 5.75" x 4" (146mm x 102mm) |
|---|
| Operating temperature | 0–60 °C |
|---|
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| 91-47300-0000 |
