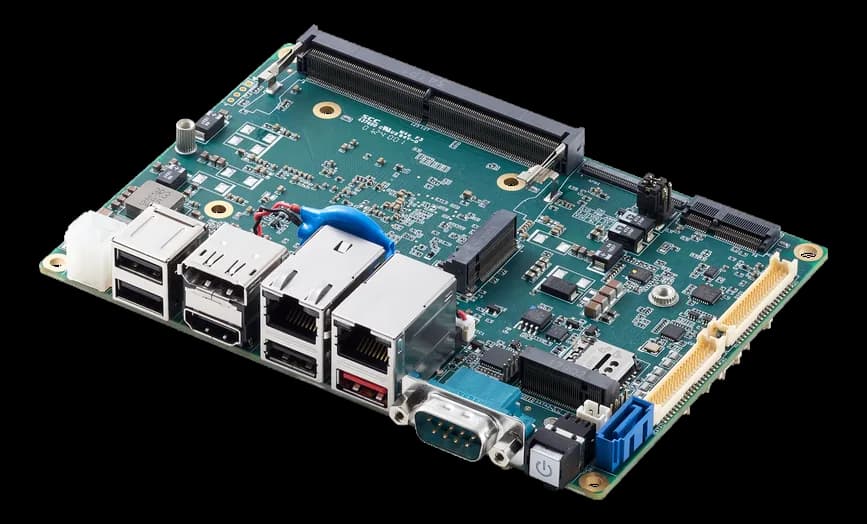

SBC35-ASL3.5" SBC Intel x7835RE/x7433RE/x7211RE with Wi-Fi and Bluetooth on M.2 E-Key
- Manufacturer
- Configurations
- 1 available configurations
SBC35-ASL is a 3.5" form factor board, 146 × 102 mm, for embedded equipment with constrained mechanics: automation cabinets, kiosks, instrumentation and operator panels built around the board footprint rather than around the enclosure.
It is distinguished by three M.2 sockets — 2280 M-Key (PCIe x2), 2230 E-Key for Wi-Fi and Bluetooth, 3042 B-Key with SIM holder — covering storage, radio and cellular connectivity on the same board. Declared ESD testing is ±4 kV contact and ±8 kV air, with CE and FCC Class B EMC compliance.
The family ordering code is 91-44840-60XX, in the configuration with x7433RE processor (4 cores, 3.4 GHz, 9 W). Available as options are TPM 2.0, a spare DC jack connector and Windows 10 IoT (92-56094-0010) or Windows 11 IoT (92-56101-0010) licences; Linux is supported.
At a glance
- DDR5 SO-DIMM up to 16 GB
- Optional TPM 2.0
- SBC-FM expansion with PCIe x1
- Eight digital inputs and eight outputs
Technical specifications
| Processor | Intel® x7835RE/x7433RE/x7211REx7433RE 4 Core 3.4GHz 9W(optional) |
|---|
| Memory | 1x DDR5 SO-DIMMs, up to 4800MHz, up to 16GB |
|---|
| SATA ports | 1× SATA 6Gb/s ports w/ 5V SATA power |
|---|
| Video outputs | eDP/ LVDS*1 (default LVDS)1 DisplayPort1 HDMI |
|---|
| Digital I/O | 8 DI and 8 DO through 40pin box header |
|---|---|
| Connectors | Reserve DC JACK connector(optional) |
| Audio | 1× line-in, 1× line-out, MIC-in through 40pin box header |
| Ethernet ports | 2× Intel® i210IT, support 1Gbps/ 100Mbps / 10Mbps |
| Serial interfaces | COM2: RS-232/422/485 DB9 or 40pin box header (default) by BOM optionCOM1: RS-232/422/485 (rear I/O)COM3/4: 2× RS-232 through 40pin box header |
| USB ports | 1× USB 3.2 Gen 2x1 ports (10Gbps) (rear I/O)3x USB 2.0 (rear I/O |
| Wireless | BluetoothWi-Fi |
|---|
| Form factor | 3.5" SBC |
|---|
| Supply voltage | 12V-24V |
|---|
| Dimensions | 5.75" x 4" (146mm x 102mm) |
|---|
| Operating temperature | -40–85 °C |
|---|
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows 10 IoT(optional)Windows 11 IoT(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| 91-44840-60XX |
