SBC35-MTL3.5" SBC with Intel Core Ultra 125H processor and integrated NPU
- Manufacturer
- Configurations
- 1 available configurations

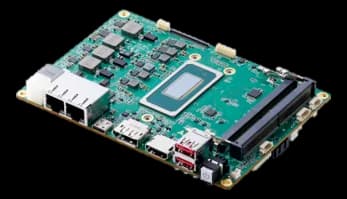

SBC35-MTL-125H is a single board computer in 3.5" format, 146 x 102 mm, built around the Intel Core Ultra 125H processor in the 28 W MTL-H variant. It fits into control systems, HMI and edge computing nodes where the constraint is board footprint, not slot count.
Expansion and integration make the difference: three M.2 sites (2280 M key PCIe x4, 2230 E key, 3042 B key with SIM holder), an SBC-FM connector for daughter boards and optional TPM 2.0. On the software side the board covers Linux, with Ubuntu 22.04 LTS supported per project, and Windows 10 IoT or Windows 11 IoT as separately orderable licences.
Available configuration: 91-47301-00, SBC35-MTL with 125H CPU and two DDR5 SO-DIMM sockets.
At a glance
- Integrated NPU for AI inference
- Memory up to 96 GB non-ECC
- Dedicated MIPI-CSI path for camera
- Up to 4 independent displays
Technical specifications
| Processor | Intel® Core™ Ultra delivers efficient · MTL-U, 15W /MTL-H, 28W |
|---|
| Memory | 2x DDR5 SO-DIMMs 5600MHz, up to 96 GB, non-ECC(variant serie) |
|---|
| SATA ports | 1× SATA 6Gb/s ports w/ 5V SATA power |
|---|
| Video outputs | eDP x1 (LVDS through RPL driving board)1x HDMI2.01x DP1.4(DisplayPort) |
|---|
| Digital I/O | GPIO 8-bit through 30pin header |
|---|---|
| Connectors | connector type: 2x2 connector + DC JACK co-lay |
| Audio | 1× line-in, 1× line-out, MIC-in through 30pin header |
| Ethernet ports | 2× Intel® I226V, 2.5Gps / 1Gbps/ 100Mbps / 10Mbps |
| Serial interfaces | 2× RS-232/422/485 pin headers |
| USB ports | 2× USB 2.0 through 30pin header1x USB 2.0 via headers2x USB 3.2 Gen 2x1 ports (10Gbps) (rear I/O) |
| Form factor | 3.5" SBC |
|---|
| Supply voltage | 12V-24V |
|---|
| Dimensions | 5.75" x 4" (146mm x 102mm) |
|---|
| Operating temperature | 0–60 °C |
|---|
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows 10 IoT(optional)Windows 11 IoT(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| 91-47301-00 |
