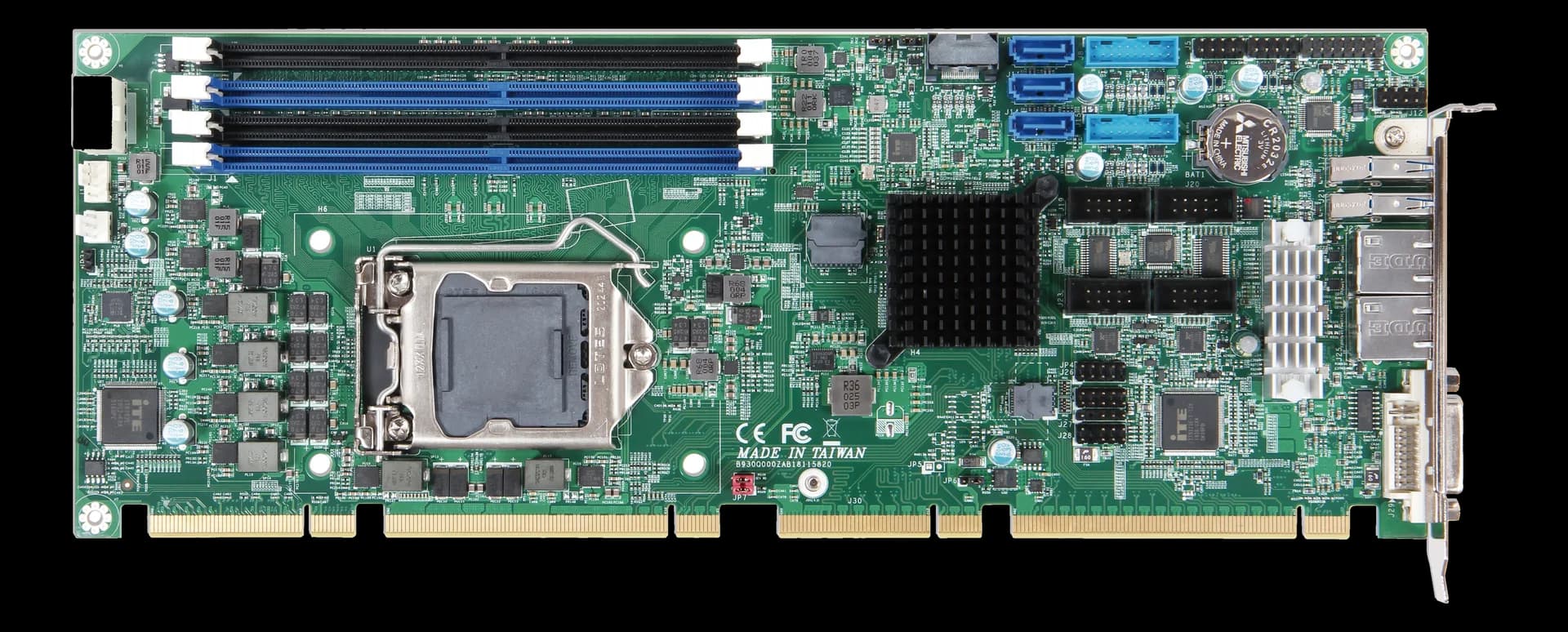

ROBO-8115VG2ARCPU card PICMG 1.3 full-size con chipset Intel W480E/Q470E e socket LGA1200

Produttore

ROBO-8115VG2AR è una CPU card PICMG 1.3 full-size: accetta processori Intel Xeon, Core i9/i7/i5/i3, Pentium e Celeron di 10ª generazione (Comet Lake), con TDP fino a 95 W. La memoria DDR4 arriva a 128 GB, con correzione d’errore.

L'espansione offre slot PCIe x16, PCIe x8, PCIe x4, PCIe x1 e PCI. La rete combina porte Gigabit e Fast Ethernet. Le uscite video comprendono VGA, HDMI e DVI. Lo storage copre M.2. L'esercizio è dichiarato fra 0 e 60 °C.

In sintesi

Socket CPU: LGA1200
Classe CPU: Intel Celeron/Pentium
TPM: TPM 2.0
Generazione CPU: 10ª gen (Comet Lake)
Processore: - Intel® Xeon® W family/ Core™ i3/i5/i7/i9/ Pentium® / Celeron® processors up to 4.8 GHz (35~95W) in LGA-1200 package - DMI x4 Link: 5.0GT/s - Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution and Speed Step Technology (depends on CPU sku) · Intel® Comet Lake-S W series and Core™ i Processors

Richiedi informazioni Specifiche complete ↓

Specifiche tecniche

Socket CPU	LGA1200
Chipset	W480EQ470E
Classe CPU	Intel Celeron/PentiumIntel Core i3/i5/i7/i9Intel Xeon
TPM	TPM 2.0
BIOS	AMI UEFI BIOS
Generazione CPU	10ª gen (Comet Lake)
Processore	- Intel® Xeon® W family/ Core™ i3/i5/i7/i9/ Pentium® / Celeron® processors up to 4.8 GHz (35~95W) in LGA-1200 package - DMI x4 Link: 5.0GT/s - Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution and Speed Step Technology (depends on CPU sku) · Intel® Comet Lake-S W series and Core™ i Processors
Watchdog	sì
TDP CPU	35–95 W
Grafica	- Intel® processors integrated graphics engine - Provides improved 3D multimedia capabilities including Microsoft DirectX 12, OpenGL 4.5 · - Controller: Intel® Gfx Gen 9, HD graphics 630 - VGA: Resolution up to 1920 x 1200 @ 60Hz - DVI-D: Resolution up to 1920 x 1200 @ 60Hz (VGA+DVI-D on bracket by DVI-I port) - HDMI: Resolution up to 4096 x 2160 @ 30Hz

RAM massima espandibile	128–128 GB
Tipo RAM	DDR4
Supporto ECC	sì
Memoria RAM	- Supports up to 128GB DDR4 2666 SDRAM on four 288-pin DIMM sockets - Supports ECC (W480E) / Non-ECC (Q470E)

Storage	- 5x SATAIII drives (Dual ports via Backplane) - Supports RAID 0, 1, 5, 10 - 1x M.2 Type M 2280 (on bottom side)

Uscite video	Triple independent displays by -VGA on bracket: Resolution up to 1920x1200 @ 60Hz - DVI-I on bracket: up to 1920x1200 @ 60Hz (VGA + DVI-D on bracket by DVI-I port) - HDMI on board: up to 4096x2160 @ 30Hz

Porte USB	- 4x USB 2.0 ports through backplane (480Mb/s) - 4x USB 3.2 Gen 2 ports on board (10Gb/s) - 2x USB 3.2 Gen 2 ports on bracket (10Gb/s) · - USB Port: 2x USB 3.2(Gen2) on bracket, 4x USB 3.2(Gen1) on board header , 4x USB2.0 on board header and 4x USB2.0 via BP
Audio	- Intel® PCH built-in High Definition Audio up to 192-kHz 32-bit - Realtek ALC888S HDA codec, 7.1 channels - One on board audio pin header · - Audio Interface: Mic-In · Line-Out
I/O digitale	On board programmable 8-bit Digital I/Os · One pin-header for GPIO (8bit in &8bit out) · - GPIO connector: 8GPI + 8GPO
Porte Ethernet	- Intel® WGI219LM + WGI225LM Gigabit Ethernet controller - Dual 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet - PCI Express x1 interface based on Gigabit Ethernet - Dual RJ-45 connectors with two LED indicators
Interfacce seriali	- 2x RS-232 ports - 2x RS-232/422/485 ports selectable - LPC to COM port IC: Fintek F81216DG · - Serial Ports: 2x RS-232 & 2x RS-232/422/485 selectable by bios
Altri I/O	1x 10 pin box header for external PS/2 KB & MS · Line-in (on-board header)

Espansione	- From CPU: 1x PCIe x16 or 2x PCIe x8 or 1x PCIe x8 + 2x PCIe x4 by jumper setting (Gen 3 up to 8.0 GT/s) - From PCH: 1x PCIe x4 or 4x PCIe x1 by different BIOS support (Gen 3 up to 8.0 GT/s) - 4x PCI devices at 32bit 33MHz
