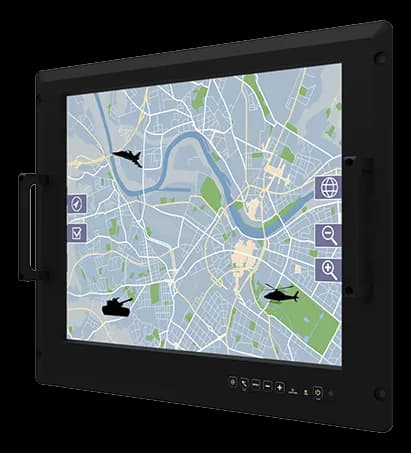

R19L100-RKA3ML19" rugged monitor for rack mounting with AC and DC input
- Manufacturer
R19L100-RKA3ML is a wide-format Winmate rugged display for equipment rooms, technical rooms and centralized supervision stations, where the monitor works continuously alongside the rest of the plant electronics.
The environmental profile combines relative humidity from 10 to 95% with a storage temperature from -30 to 70 °C: margins meant for depots, transport and technical rooms without air conditioning.
At a glance
- Display size: 19 ″
- Resolution: 1280x1024 SXGA
- Brightness: Up to 399 standard cd/m²
- Video inputs: VGA
- Contrast ratio: 1000:1
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Aspect ratio | 4:3 |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGADVI |
| Contrast ratio | 1000:1 |
| Viewing angle | 85° / 85° / 80° / 80° (L/R/U/D) |
| Display colors | 16.7M colori |
| Active area | 376.32 × 301.06 mm |
| Surface treatment | Anti-reflective (AR)(default) |
| OSD controls | 7 key: Power, Decrease, Increase, Exit/Auto, Menu, Day/Night, Lock/Unlock |
| Other I/O | Video 1 x 15 Pin D-Sub · 5× BNC |
|---|
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | Rack MountVESA Mount(optional) |
|---|---|
| Chassis material | alluminio, metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | MIL-STD-810FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
