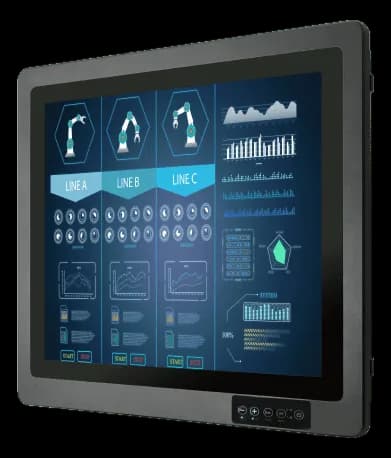

R19L100-67FTP19" 1000 cd/m² PCAP touch monitor with IP67 rating
- Manufacturer
R19L100-67FTP is a 19-inch Winmate industrial monitor for outdoor stations or environments subject to washdown, where the sealing covers the whole enclosure and not the front alone.
The panel adopts optical bonding, with the optical layer bonded to the glass to limit internal reflections and condensation phenomena between the two layers. Storage is allowed over the -30~70 °C range and the total weight is 9.8 kg.
At a glance
- Display size: 19 ″
- Resolution: 1280x1024 SXGA
- Brightness: 1000+ sunlight cd/m²
- Touchscreen: PCAP
- Contrast ratio: 1000:1
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | 1000+ sunlight cd/m² |
| Touchscreen | PCAP |
| Video inputs | HDMI(optional)VGA(default) |
| Aspect ratio | 5:4 |
| Contrast ratio | 1000:1 |
| Viewing angle | 85,85,80,80 |
| Display colors | 16.7M Colors |
| Active area | 376.32 × 301.06 mm |
| Optical bonding | Yes |
| OSD controls | 1× Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| USB ports | 1× M12 type connector for Touchscreen via USB signal |
|---|---|
| Serial interfaces | 1× M12 type connector for Touchscreen via RS232 signal(optional) |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA MountPanel Mount |
|---|---|
| Dimensions | 474 × 410 × 111 mm |
| Cutout dimensions | 462 × 386 mm |
| Weight | 9.8 kg |
| Chassis material | alluminio |
| IP rating | Full IP67 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
