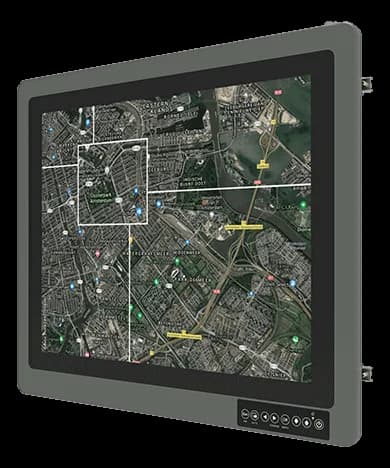

R19L100-MLA319" rugged monitor for defense, fanless with an integrated heater
- Manufacturer
R19L100-MLA3 is a wide-format Winmate rugged display for outdoor installations, cold rooms and unheated sheds, all contexts where the climate, even before the electronics, is the dominant design constraint.
Admissible relative humidity runs from 10 to 95% and the storage temperature likewise covers the -40 to 70 °C range, so transport and plant downtime impose no precautions beyond those of operation.
At a glance
- Display size: 19 ″
- Resolution: 1280x1024 SXGA
- Brightness: Up to 399 standard cd/m²
- Video inputs: VGA
- Contrast ratio: 1000:1
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Aspect ratio | 4:3 |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGADVI |
| Contrast ratio | 1000:1 |
| Viewing angle | 85° / 85° / 80° / 80° (L/R/U/D) |
| Display colors | 16.7M colori |
| Active area | 376.32 × 301.06 mm |
| Surface treatment | Anti-reflective (AR)(default) |
| Serial interfaces | 1× RS232 Remote Control(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA MountWall Mount(optional) |
|---|---|
| Chassis material | alluminio, metallo |
| IP rating | IP65 |
|---|---|
| Operating temperature | -40–70 °C |
| Cooling | Fanless |
| Storage temperature | -40–70 °C |
| Certifications | CEFCCMIL-STD-810 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
