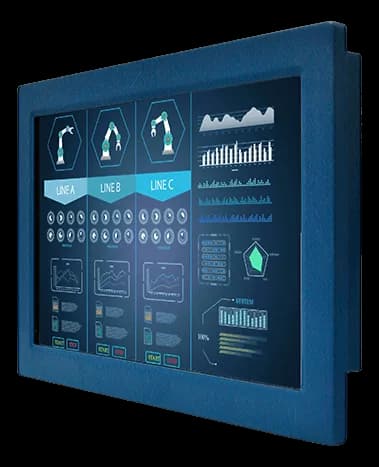

R12L100-VMM212.1" rugged monitor with resistive touchscreen and IP65 front
- Manufacturer
R12L100-VMM2 is a Winmate rugged display in the mid format of the range, suited to machine-side use and operator stations where cabinet space is limited and shop conditions rule out commercial displays.
The storage temperature from -30 to 70 °C protects the monitor in transit and in the warehouse, while passive, fanless cooling avoids filters to replace and reduces mechanical failure points.
At a glance
- Display size: 12.1 ″
- Resolution: 1024x768 XGA
- Brightness: 400-599 high cd/m²
- Touchscreen: Resistive
- Contrast ratio: 1000:1
Technical specifications
| Display size | 12.1 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Aspect ratio | 4:3 |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive |
| Video inputs | VGA(default)HDMI(optional) |
| Contrast ratio | 1000:1 |
| Viewing angle | 89° / 89° / 89° / 89° (L/R/U/D) |
| Display colors | 16.2M colori |
| Active area | 245.76 × 184.32 mm |
| OSD controls | 5 Keys: - , + , Power , Esc , Enter |
| USB ports | 1× USB type-A for touch screen control(optional) |
|---|---|
| Serial interfaces | 1× RS232 D-sub9 for touch screen control(optional) |
| AC/DC input | DC |
|---|---|
| Power input | 10–60 V |
| Mounting | Yoke MountVESA Mount |
|---|---|
| Weight | 3.1 kg |
| Chassis material | alluminio |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -10–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
