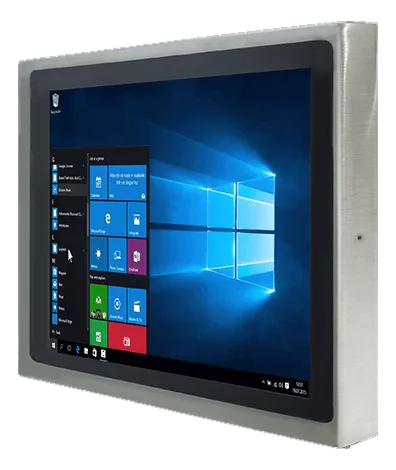

R10IB3S-SPT26910.4" fanless industrial panel PC with a stainless steel chassis
- Manufacturer
R10IB3S-SPT269 is a 10.4" industrial panel PC with a capacitive (PCAP) touchscreen, intended for operator interfaces in production and automation environments. Fanless cooling and VESA mounting allow integration in fixed stations or on arms.
The stainless steel chassis stands apart for use in contexts that call for resistant, easy-to-clean surfaces. The display reaches a brightness of 500 cd/m² with a 1000:1 contrast ratio, while the Intel Celeron N2930 platform runs at 1.83 GHz with burst up to 2.16 GHz. Power input is 12 V DC.
At a glance
- CPU class: Intel Celeron/Pentium
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- Memory: 4GB(Default) (Default) GB
- Display size: 10.4 ″
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 4GB(Default) (Default) GB8GB GB(optional) |
|---|
| Storage | 128GB SSD(Default) (Default)(SSD/HDD)256GB SSD(optional · SSD/HDD)512GB SSD(optional · SSD/HDD) |
|---|
| Display size | 10.4 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | 400-599 high cd/m² |
| Resolution | 1024x768 XGA |
| Contrast ratio | 1000:1 |
| Viewing angle | 88,88,88,88 |
| Active area | 210.4 × 157.8 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Ethernet ports | 1× GbE (RJ45), waterproof2× Intel Ethernet Controller |
|---|---|
| USB ports | 1x M12 Waterproof Connector for2× USB 2.0 |
| Serial interfaces | 1× RS-232 (M12), waterproof |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA MountYoke Mount(optional) |
|---|---|
| Chassis material | acciaio inox |
| Cooling | Fanless |
|---|---|
| Storage temperature | -20–60 °C |
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
