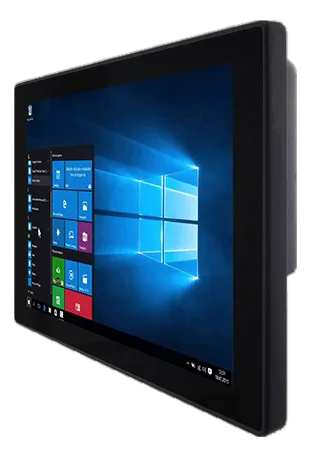

R12IB3S-GSM2(HB)12.1" fanless IP65 rugged panel PC with TPM 2.0
- Manufacturer
R12IB3S-GSM2(HB) is a Winmate rugged panel PC for the operator interface at the machine and at line stations: a single chassis integrates display and computing, avoiding the separate PC and its video cabling.
The system is offered with Linux or Windows 10 IoT and the display declares a contrast ratio of 1000. The aluminum frame admits storage from -30 to 60 °C and relative humidity up to 95%.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- TPM: TPM 2.0
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB(Default) 8GB (Optional) GB8GB GB(optional) |
|---|
| Storage | 128GB (Default) 256GB (Optional) 512GB (Optional)256GB(optional)512GB(optional) |
|---|
| Display size | 12.1 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 400-599 high cd/m²(default)1000+ sunlight cd/m²(optional) |
| Touchscreen | PCAP(default) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 4:3 |
| Viewing angle | 89,89,89,89 |
| Active area | 245.76 × 184.32 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Ethernet ports | 1× Intel® Gigabit Ethernet Controller1× LAN-10/100/1000 (M12 type) |
|---|---|
| USB ports | 1× USB 2.0 (M12 type) |
| Serial interfaces | 1× RS232/422/485 (Default RS232)(M12 type) |
| Other I/O | 1× Power Button · 1× Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA MountPanel Mount(optional) |
|---|---|
| Dimensions | 296.2 × 226.7 × 45.5 mm |
| Chassis material | alluminio |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -15–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | FCCMIL-STD-810CE |
|---|
| Operating systems | Windows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
