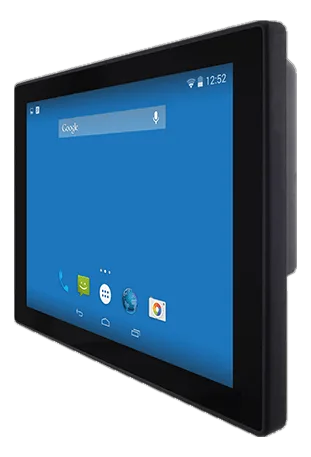

R12FA3S-GSM2(HB)12.1" fanless rugged panel PC on an ARM platform
- Manufacturer
R12FA3S-GSM2(HB) is a Winmate rugged panel PC for operator interfaces in industrial environments: display and computing unit live in a single device, reducing cabling and footprint inside the electrical cabinet.
Mounting is provided either as panel mount or on a VESA bracket, and the operating system is offered with Android or Linux; storage is admitted from -30 to 60 °C, with relative humidity tolerated up to 95%.
At a glance
- CPU class: ARM Cortex-A9
- Processor: NXP i.MX6 Dual Core, 1.0GHz
- CPU frequency: 1 GHz
- CPU cores: 2–4
- Memory: 1GB (Default) GB
Technical specifications
| CPU class | ARM Cortex-A9 |
|---|---|
| Processor | NXP i.MX6 Dual Core, 1.0GHzNXP i.MX6 Dual Core 1GHz (Optional Quad Core) |
| CPU frequency | 1 GHz |
| CPU cores | 2–4 |
| Memory | 1GB (Default) GB2GB GB(optional) |
|---|
| Storage | 1× Micro SD Card SloteMMC: Onboard 16 GB (Default)eMMC: Onboard 32 GB(optional) |
|---|
| Display size | 12.1 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 400-599 high cd/m²(default)1000+ sunlight cd/m²(optional) |
| Touchscreen | PCAP(default) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 4:3 |
| Viewing angle | 89,89,89,89 |
| Active area | 245.76 × 184.32 mm |
| Ethernet ports | 1× LAN-10/100/1000 (M12 type) |
|---|---|
| USB ports | 1× USB 2.0 (M12 type) |
| Serial interfaces | 1× RS232 (M12 type)(Optional 422/485) |
| Audio | 2× Speaker |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | Panel MountVESA Mount |
|---|---|
| Dimensions | 296.2 × 226.7 × 45.5 mm |
| Chassis material | alluminio, metallo |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -15–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | MIL-STD-810CEFCC |
|---|
| Operating systems | AndroidLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
