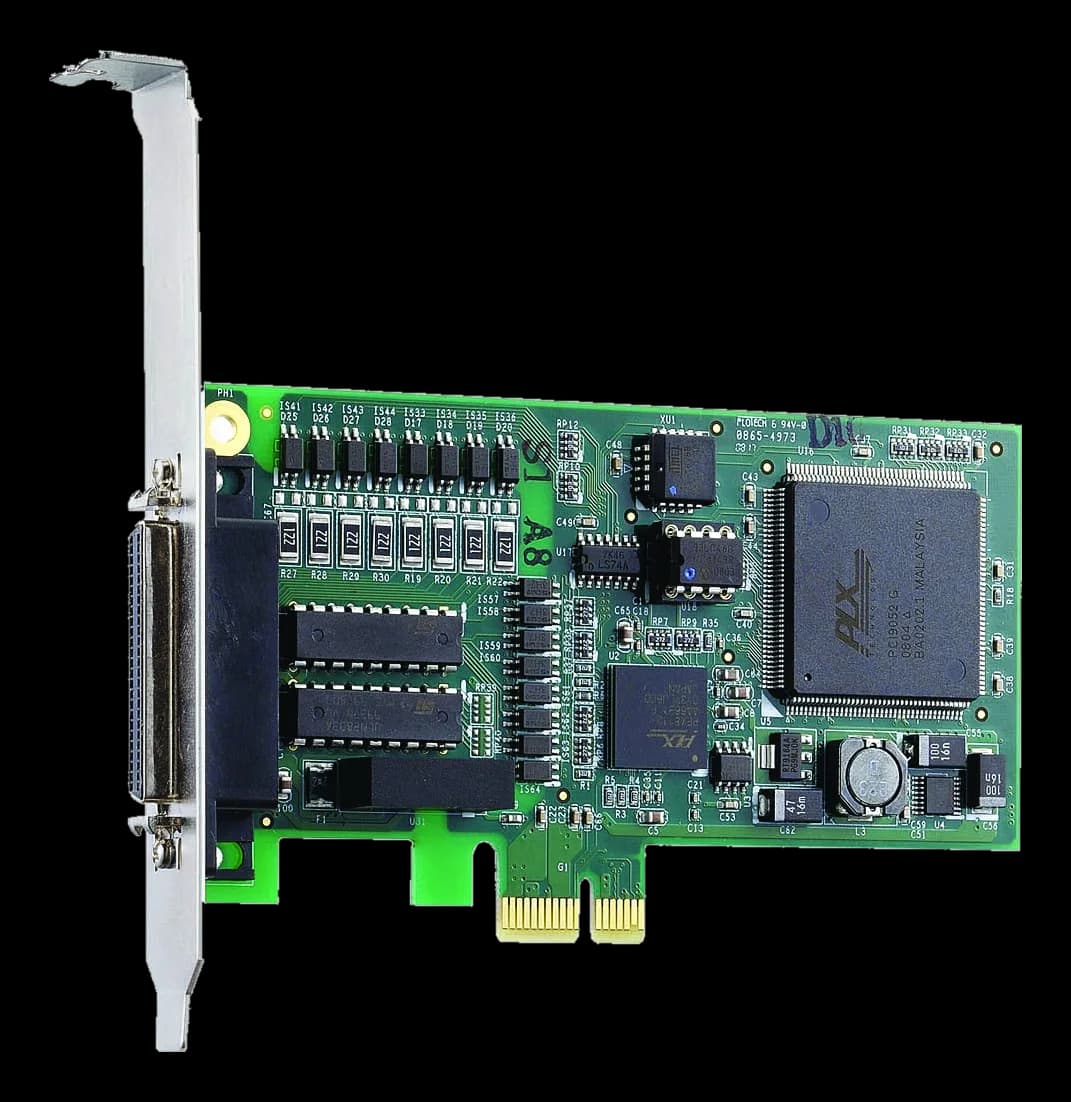

LPCIe-7230Low-profile PCI Express board with 16 isolated inputs and 16 outputs
- Manufacturer
LPCIe-7230 is an isolated digital I/O board in low-profile format for a PCI Express slot, used to interface an industrial PC with cabinet signals such as contacts, limit switches and relay commands.
The host interface is a single PCI Express lane and the Darlington transistor outputs sink up to 500 mA on a single channel. Load supply is allowed between 5 and 35 VDC.
At a glance
- Channels: 32 channel
- Acquisition specifications: Dual interrupt trigger
- Isolation voltage: 2500 VRMS
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
Technical specifications
| Digital I/O | 16× DI isolati + 16× DO isolati (transistor Darlington, sink 500 mA) |
|---|
| Channels | 32 channel |
|---|---|
| Acquisition specifications | Dual interrupt triggerResistenza d'ingresso 1,2 kΩ @ 0,5 W(misc)Uscite open collector: alimentazione esterna 5–35 VDC(range)Ingressi 0–24 V non-polarity (logic H 5–24 V, L 0–1,5 V)(isolation) |
| Isolation | Yes |
| Isolation voltage | 2500 VRMS |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | programmed I/Ox1 lane PCI Express Interface |
| Dimensions | 119.9 × 68.9 mm |
|---|
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -20–80 °C |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
