LPCIe-7250Low-profile PCI Express board with 8 relay outputs and 8 isolated inputs
- Manufacturer

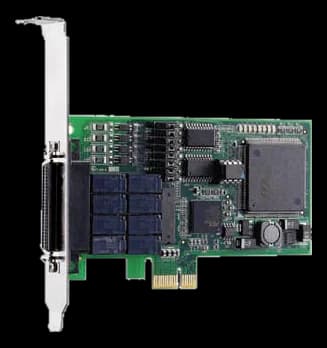

LPCIe-7250 is a relay output and isolated digital input board for a PCI Express slot, used to drive cabinet loads directly and to read contacts from an industrial PC.
The relay contacts withstand 30 V and 2 A DC, with switching and release times of 8 ms. The inputs have an impedance of 2200 ohm and field wiring lands on a 50-pin SCSI-II connector.
At a glance
- Channels: 16 channel
- Isolation voltage: 5000 VRMS V
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
- Operating temperature: 0–60 °C
Technical specifications
| Digital I/O | 8× uscite relè (SPDT, normally open) + 8× DI isolati |
|---|---|
| Connectors | N-pin connector(female) |
| Channels | 16 channel |
|---|---|
| Input impedance | 2.2 KΩ ohm |
| Acquisition specifications | Corrente d'ingresso 10 mA nominale (max 60 mA)(range) |
| Isolation | Yes |
| Isolation voltage | 5000 VRMS V |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | programmed I/Ox1 lane PCI Express Interface32-bit CompactPCI® Bus, Plug and Play |
| Dimensions | 120 × 69 mm |
|---|
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -20–80 °C |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
