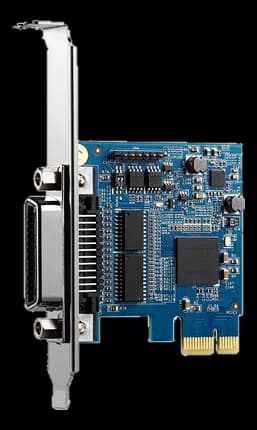

LPCIe-3488AIEEE-488 GPIB controller board for the PCI Express bus
- Manufacturer
LPCIe-3488A is a GPIB control board for computers with a PCI Express slot, used on test benches to drive laboratory instruments over the IEEE-488 bus.
Up to 14 instruments can be connected on the bus, with a stated transfer rate of up to 1.5 MB/s. Operation is specified between 0 and 55 °C and programming can rest on the industry-standard VISA library.
At a glance
- Board function: GPIB / Instrumentation
- Architecture standard: PCI Express
- Operating temperature: 0–55 °C
Technical specifications
| Connectors | N-pin connector(IEEE 488 standard 24-pin connector) |
|---|
| Acquisition specifications | Fino a 14 strumenti collegabili(misc) |
|---|
| Board function | GPIB / Instrumentation |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | PCI Express 1.1 compatibilityMaximum 1.2 MB/s data transfer rate (LPCI-3488A and LPCIe-3488A) |
| Power consumption | 0.26–0.3 W(+3.3V)1.2–1.8 W(+12V) |
|---|
| Dimensions | 119.77 × 68.9 mm |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–80 °C |
| Certifications | CEFCC |
|---|
| Operating systems | Windows |
|---|---|
| Driver & SDK | Provide APIs compatible with NI-488.2 driver software |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
