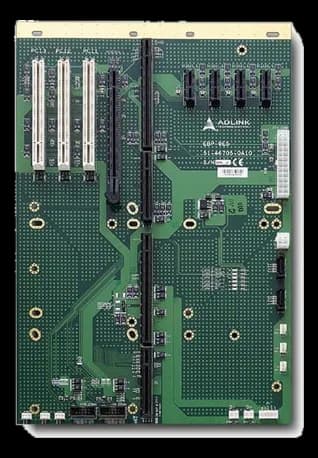

EBP-9E5PICMG 1.3 backplane with four PCI Express x1 slots
- Manufacturer
EBP-9E5 is a PICMG 1.3 backplane weighted toward PCI Express: four x1 slots take the recent generation serial I/O and network boards, while the x16 slot stays free for a graphics board or an accelerator.
Three PCI slots remain for the boards already in service and one PICMG slot for the CPU board. The printed circuit board is deeper than it is wide and suits card cages developed in height, where the boards face the front rather than lying across the bottom.
At a glance
- Architecture standard: PICMG 1.3
Technical specifications
| Architecture standard | PICMG 1.3 |
|---|
| Dimensions | 244 × 348 mm |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
