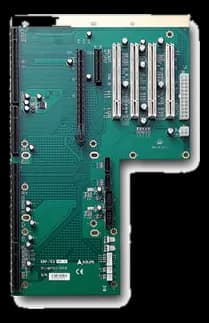

EBP-7E2Seven-slot PICMG 1.3 backplane with 32-bit PCI
- Manufacturer
EBP-7E2 is a seven-slot PICMG 1.3 backplane: an intermediate size, suited to card cages that have to house a few acquisition boards without reaching the full chassis.
To the PICMG slot for the CPU board are added one PCI Express x16 slot, one x4 and four PCI slots at 32 bit and 33 MHz, the bus on which most of the measurement boards already installed in plants run. The intermediate size contains the footprint without giving up expansion.
At a glance
- Architecture standard: PICMG 1.3
Technical specifications
| Architecture standard | PICMG 1.3 |
|---|
| Dimensions | 328 × 206 mm |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
