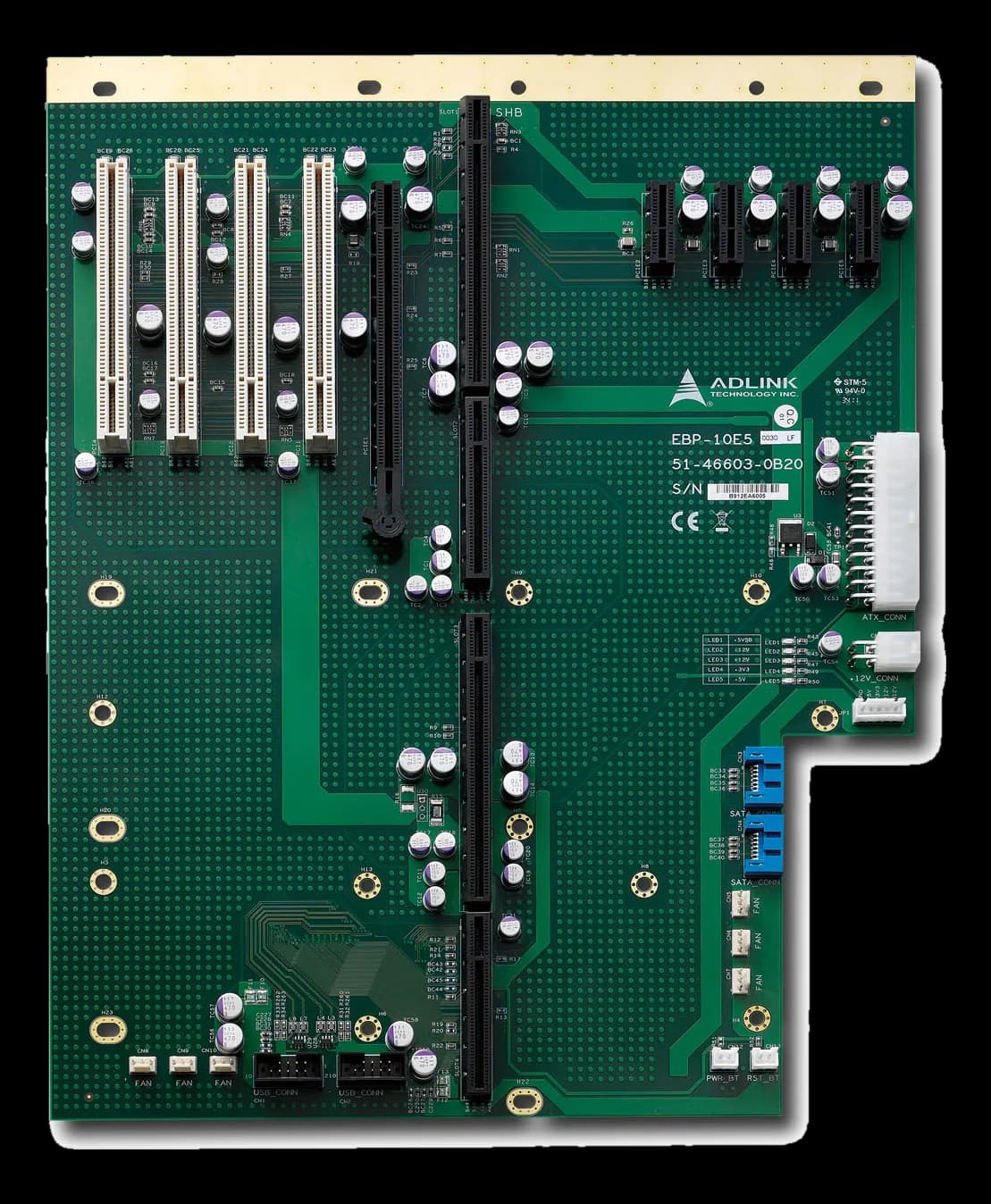

EBP-10E5PICMG 1.3 backplane with ten slots across PCI Express and PCI
- Manufacturer
EBP-10E5 is a PICMG 1.3 backplane: it hosts a single board computer in SHB format and distributes its buses to the expansion boards mounted in the same card cage. It is the usual choice when maintenance has to be able to replace the CPU without removing the application boards.
The layout includes the PICMG slot for the CPU board, one PCI Express x16 slot, four x1 and four PCI slots, so that recent boards and legacy boards can coexist in the same chassis.
At a glance
- Architecture standard: PICMG 1.3
Technical specifications
| Architecture standard | PICMG 1.3 |
|---|
| Dimensions | 330 × 318 mm |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
