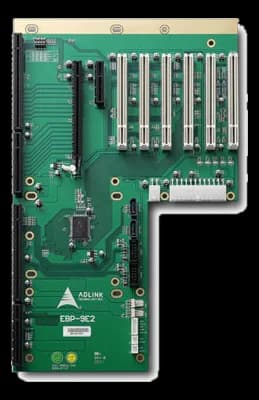

EBP-9E2Nine-slot PICMG 1.3 backplane with six PCI
- Manufacturer
EBP-9E2 is a nine-slot PICMG 1.3 backplane, sized for test and control systems that concentrate many measurement boards in a single card cage.
The split provides the PICMG slot for the single board computer, one PCI Express x16 slot, one x4 and six PCI slots at 32 bit and 33 MHz. The printed circuit board stays in the format of standard industrial chassis, so replacing a smaller backplane does not require redoing the card cage wiring.
At a glance
- Architecture standard: PICMG 1.3
Technical specifications
| Architecture standard | PICMG 1.3 |
|---|
| Dimensions | 328 × 206 mm |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
