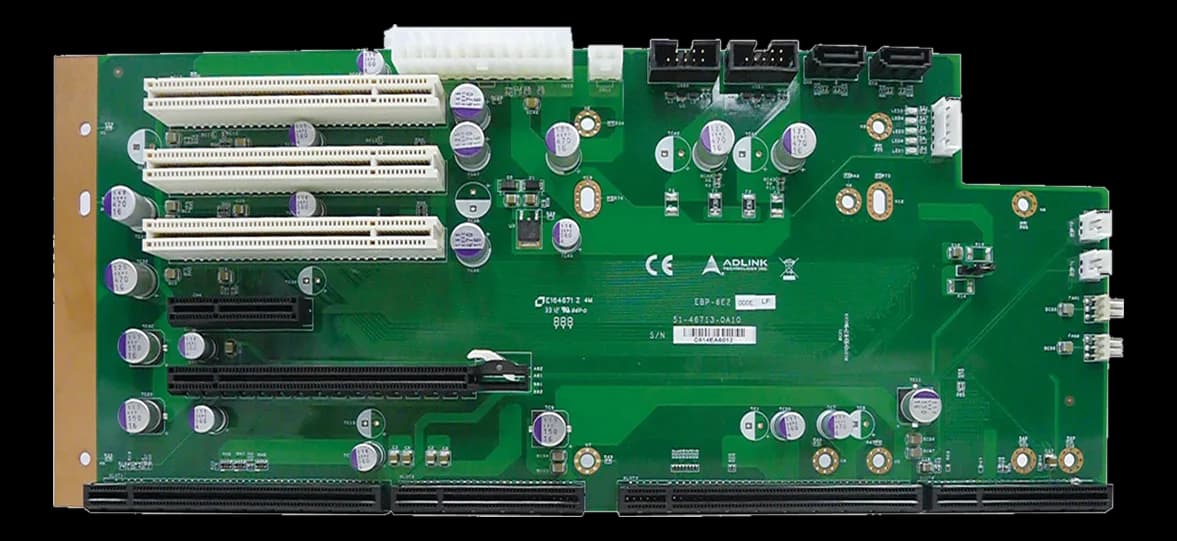

EBP-6E2Compact PICMG 1.3 backplane with three PCI slots
- Manufacturer
EBP-6E2 is a PICMG 1.3 backplane of contained size, designed for chassis where the number of boards is limited and the footprint matters more than expansion capacity.
The board hosts the PICMG slot for the CPU, one PCI Express x16 slot, one x4 and three PCI slots. The format is narrow and elongated: it leaves room in depth for the cabling and for the airflow, a geometry that suits low card cages where the bottom of the chassis is the only surface available.
At a glance
- Architecture standard: PICMG 1.3
Technical specifications
| Architecture standard | PICMG 1.3 |
|---|
| Dimensions | 140 × 327 mm |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
