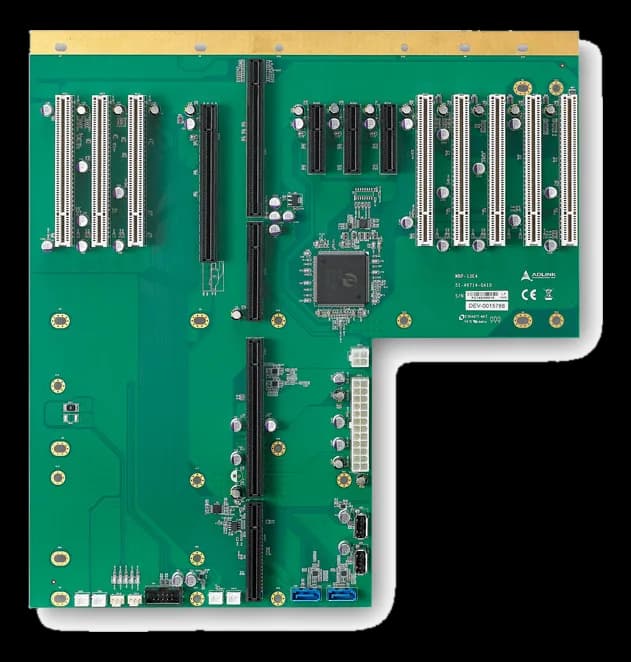

WBP-13E4PICMG 1.3 workstation backplane with eight PCI slots
- Manufacturer
WBP-13E4 is a workstation class PICMG 1.3 backplane: it is made for systems that must host many application boards behind a single board computer, typically test benches and measurement stations.
The set includes the PICMG slot for the CPU board, one PCI Express x16 slot with x8 bandwidth, three x4 slots and eight PCI slots. The ratio between legacy slots and PCI Express slots is that of someone who must keep an existing board fleet and at the same time open the way to more recent controllers.
At a glance
- Architecture standard: PICMG 1.3
Technical specifications
| Architecture standard | PICMG 1.3 |
|---|
| Dimensions | 328 × 312 mm |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
