DRPC-240-TGL-UFanless embedded computer configurable with Celeron, Core i5 or Core i7
- Manufacturer
- Configurations
- 8 available configurations

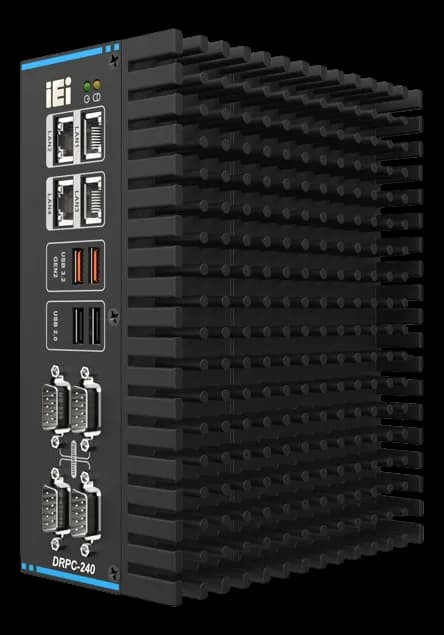

DRPC-240-TGL-U is a fanless IEI embedded computer for machine control and industrial vision: black extruded aluminum chassis, connector for an external fan and CE and FCC markings.
The CPU is configured to order between Celeron, Core i5 and Core i7, from 2 to 4 cores and up to 4.4 GHz with a 15 W TDP; on board there are two DDR4 3200 SO-DIMM (8 GB preinstalled, max 64 GB), a 2.5" SATA bay, four 2.5GbE ports with an optional PoE af module, isolated RS-232 and RS-422/485 serial ports, HDMI and DP++ outputs and both AC and DC input.
At a glance
- Processor: Intel® Celeron® 6305E 1.8 GHz (dual-core, TDP 15W)
- CPU TDP: 15 W
- RAM type: DDR4
- Maximum RAM: 64 GB
- Storage: 1× 2.5" SATA 6Gb/s HDD/SSD bay
Technical specifications
| Processor | Intel® Celeron® 6305E 1.8 GHz (dual-core, TDP 15W) |
|---|---|
| Chipset | SoC |
| CPU TDP | 15 W |
| Memory | 2× SO-DIMM DDR4 3200 MHz (8 GB pre-installati)(default) |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 1× 2.5" SATA 6Gb/s HDD/SSD bay |
|---|
| Video outputs | 1× DP++ (fino a 4096×2304 @60Hz)(4096x2304 · DisplayPort)1× HDMI (fino a 3840×2160 @30Hz)(3840x2160) |
|---|
| Ethernet ports | 1× 2.5 GbE (Intel I226LM)3× 2.5 GbE (Intel I226V, co-lay I226LM)4× RJ45 (modulo PoE af opzionale)(optional) |
|---|---|
| USB ports | 2× USB 2.02× USB 3.2 Gen 2 |
| Serial interfaces | 2× RS-422/485 con AFC (DB9), isolate 2,5 kV2 x RS-232 (DB-9, with 2.5kV isolation) ● Digital I/O: 12-bit Digital I/O (6-in/ 6-out) (optional) ● |
| Digital I/O | I/O digitale 12-bit (6-in/6-out), opzionale(optional) |
| Other I/O | 1 x Power button · 1 x Reset button · 1 x AT/ATX switch |
| Expansion | 1× M.2 2230 A-key (PCIe Gen3 x1/USB 2.0)1× 2230 A-key (PCIe Gen3 x1/USB 2.0)(PCIe-x1)1 x On-board SIM card socket (hinge type) for M.2 B key ● Backplane: 1 x PCIe x4(optional)1× 3042/52/80 B-key (PCIe Gen3 x1/USB 3.0/USB 2.0)(PCIe-x1) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–28 V |
| Power consumption | 83.76 W |
| Weight | 2.15 kg |
|---|---|
| Chassis material | alluminio(extruded) |
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–60 °C |
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Memory | Storage | Video outputs | Digital I/O |
|---|---|---|---|---|
| DRPC-240-TGL-U-CECS-R11 | 8 GB DDR4 pre-installata2× SO-DIMM DDR4 3200 MHz (8 GB pre-installati) | 1× 2.5" SATA 6Gb/s HDD/SSD bay | 1× HDMI (fino a 3840×2160 @30Hz)1× DP++ (fino a 4096×2304 @60Hz) | I/O digitale 12-bit (6-in/6-out), opzionale |
| DRPC-240-TGL-U-i5CS-R11 | 2× SO-DIMM DDR4 3200 MHz (8 GB pre-installati)8 GB DDR4 pre-installata | 1× 2.5" SATA 6Gb/s HDD/SSD bay | 1× DP++ (fino a 4096×2304 @60Hz)1× HDMI (fino a 3840×2160 @30Hz) | I/O digitale 12-bit (6-in/6-out), opzionale |
| DRPC-240-TGL-U-i7CS-R10 | max 64 GB DDR4 SO-DIMM | — | 1× HDMI1× DP++ | 6× DI, 6× DO |
| DRPC-240-TGL-U-i7CS-R11 | 8 GB DDR4 pre-installata | — | — | — |
| DRPC-240-TGL-U-W10E64-H-R10 | — | — | — | — |
| DRPC-240-TGL-U-W10E64-V-R10 | — | — | — | — |
| DRPC-240-TGL-U-W10IoT21-H-R11 | 2 x SO-DIMM DDR4 3200 MHz (8 GB pre-installed) ( ) | 1 x 2.5” SATA 6Gb/s HDD/SSD bay | 1 x HDMI™ (up to 3840 x 2160@30Hz)1 x DP++ (up to 4096 x 2304@60Hz) | 12-bit Digital I/O (6-in/ 6-out) (optional) |
| DRPC-240-TGL-U-W10IoT21-V-R11 | 2 x SO-DIMM DDR4 3200 MHz (8 GB pre-installed) ( ) | 1 x 2.5” SATA 6Gb/s HDD/SSD bay | 1 x DP++ (up to 4096 x 2304@60Hz)1 x HDMI™ (up to 3840 x 2160@30Hz) | 12-bit Digital I/O (6-in/ 6-out) (optional) |
