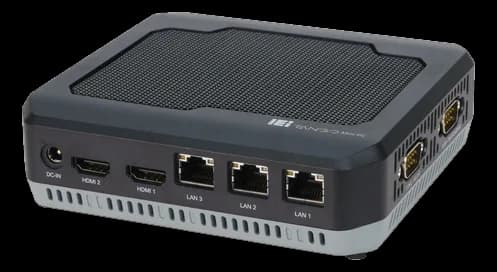

TANGO-3010Fanless IEI embedded computer for rack cabinets and VESA brackets
- Manufacturer
- Configurations
- 3 available configurations
TANGO-3010 is a fanless IEI embedded computer, designed for rack cabinets, operator stations and installations behind a monitor on a VESA bracket: a compact 0.57 kg aluminum and plastic chassis.
The platform is the quad-core Intel Celeron J6412 with 8 GB of soldered LPDDR4x (up to 16 GB); on board are three 2.5GbE ports, two HDMI, RS-232 and RS-232/422/485 serial ports, a 2.5" SATA bay, an M.2 2280 slot and a preinstalled Wi-Fi/Bluetooth module, with DC power input. Linux and Windows support.
At a glance
- CPU generation: Elkhart Lake
- Processor: Intel® Celeron J6412 2GHz (up to 2.6 GHz, quad-core, TDP 10W)
- CPU TDP: 10 W
- Memory: 8 GB LPDDR4X on-board
- RAM type: LPDDR4x
Technical specifications
| CPU generation | Elkhart Lake |
|---|---|
| Processor | Intel® Celeron J6412 2GHz (up to 2.6 GHz, quad-core, TDP 10W) |
| Chipset | SoC |
| CPU TDP | 10 W |
| Memory | 8 GB LPDDR4X on-board8GB dual-channel LPDDR4x soldered memory ... faster memory speeds at 4267MT/s GB |
|---|---|
| RAM type | LPDDR4x |
| Maximum RAM | 16 GB |
| Storage | 1× 2.5" SATA 6Gb/s HDD/SSD bay (SSD fino a 9,5 mm)its 2.5-inch SATA drive bay allows for up to 2TB of storage expansion(SSD/HDD) |
|---|
| Video outputs | 2× HDMI 1.4b, CEC (fino a 4K @30Hz) |
|---|
| Ethernet ports | 3× 2.5 GbE (Intel I226-V)3× 2.5 GbE RJ45 (I226V) |
|---|---|
| USB ports | 2× USB 3.2 Gen22× USB 2.0 |
| Serial interfaces | 1× RS-232/422/485 (DB9)1× RS-232 (DB9) |
| Other I/O | 1 x Reset button |
| Wireless | BluetoothWi-Fi |
|---|
| Expansion | 1× 2230 A-key (PCIe x1/USB 2.0), modulo Wi-Fi pre-installato1× 2280 M-key (PCIe x4) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Power consumption | 35.4 W |
| Mounting | VESA MountRack Mount |
|---|---|
| Dimensions | 139 × 39.8 × 137 mm |
| Weight | 0.57 kg |
| Chassis material | alluminio, plastica |
| Cooling | Fanless |
|---|---|
| Storage temperature | -10–60 °C |
| Certifications | CEFCCUKCA |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Video outputs | Ethernet ports | USB ports |
|---|---|---|---|
| TANGO-3010-JWC-R11 | 2× HDMI | 3× 2.5 GbE LAN | 4× USB |
| TANGO-3010-W10IoT21-E-R12 | 2 x HDMI™ | 3 x RJ-45 2.5 GbE by I226V controller | 2 x USB 3.2 Gen22 x USB 2.0 |
| TANGO-3010-W11IoT24-E-R11 | 2 x HDMI™ | 3 x RJ-45 2.5 GbE by I226V controller | 2 x USB 2.02 x USB 3.2 Gen2 |
