DRPC-130-ALFanless embedded computer for DIN rail with isolated CAN bus
- Manufacturer
- Configurations
- 1 available configurations

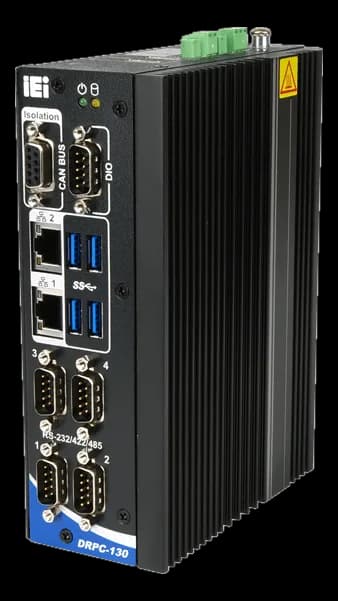

DRPC-130-AL is a fanless IEI embedded computer for machine automation and field panels: black extruded aluminum chassis, DIN rail or wall mounting and CE and FCC markings.
The dual-core Intel Atom x5-E3930 runs from 1.3 to 1.8 GHz with a 6.5 W TDP, with DDR3L up to 8 GB, a 2.5" SATA bay and optional eMMC; the I/O comprises two HDMI outputs, two GbE ports, four RS-232/422/485 serial ports, 8 bit digital I/O and one dual CAN port with 2.5 kV isolation, plus two Mini-PCIe slots and optional Wi-Fi.
At a glance
- CPU generation: Apollo Lake
- Processor: Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)
- CPU TDP: 6.5 W
- RAM type: DDR3L
- Maximum RAM: 8 GB
Technical specifications
| CPU generation | Apollo Lake |
|---|---|
| Processor | Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W) |
| Chipset | SoC |
| CPU TDP | 6.5 W |
| Memory | 1× SO-DIMM DDR3L (204 pin) (SKU DRPC-130-AL-E1/4GB: 4 GB pre-installati)(default) |
|---|---|
| RAM type | DDR3L |
| Maximum RAM | 8 GB |
| Storage | 1× 2.5" SATA 6Gb/s HDD/SSD bay1× eMMC 5.0 (opzionale, fino a 32 GB)(optional) |
|---|
| Video outputs | 2× HDMI 1.4b2× HDMI (fino a 3840×2160 @30Hz)(3840x2160) |
|---|
| Ethernet ports | 2× GbE RJ45 (PCIe, Intel I210) |
|---|---|
| USB ports | 4× USB 3.2 Gen 14× USB 3.0 |
| Serial interfaces | 4× RS-232/422/485 (DB9) |
| Digital I/O | I/O digitale 8-bit (4-in/4-out) |
| CAN bus | 1× porta per 2 CAN-bus (DB9), isolamento 2,5 kV |
| Other I/O | 1 x Power Button · 1 x Reset Button · 1 x AT/ATX Switch |
| Wireless | Wi-Fi(optional) |
|---|
| Expansion | 1× Mini PCIe half-size1× Mini PCIe full-size (supporta mSATA, co-lay SATA) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–24 V |
| Power consumption | 34.56 W |
| Mounting | DIN Rail MountWall Mount |
|---|---|
| Weight | 1.4 kg(net) |
| Chassis material | alluminio(extruded) |
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–60 °C |
| Storage temperature | -40–85 °C |
| Certifications | FCCCE |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| DRPC-130-AL-E1/4GB-R11 |
