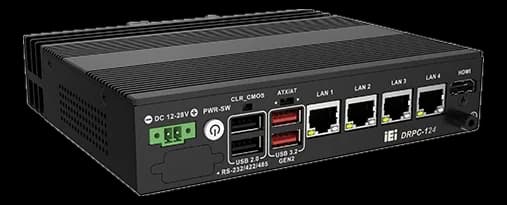

DRPC-124-EHL-JC-R10Fanless embedded computer with a quad-core Intel Celeron
- Manufacturer
DRPC-124-EHL-JC-R10 is a fanless IEI embedded computer of the DRPC-124-EHL family, conceived for automation and control in the electrical panel: passive fanless cooling and RoHS compliance.
The quad-core Intel Celeron J6412 processor runs from 2 to 2.6 GHz with a 10 W TDP, with 8 GB of on board LPDDR4x; the network offers three 2.5GbE ports and one GbE, alongside the HDMI output and the DC power input.
At a glance
- CPU generation: Elkhart Lake
- Processor: Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W)
- CPU TDP: 10 W
- Memory: 8 GB LPDDR4x on-board
- RAM type: LPDDR4x
Technical specifications
| CPU generation | Elkhart Lake |
|---|---|
| Processor | Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W) |
| CPU TDP | 10 W |
| Memory | 8 GB LPDDR4x on-board |
|---|---|
| RAM type | LPDDR4x |
| Video outputs | 1× HDMI |
|---|
| Ethernet ports | 1× GbE LAN3× 2.5 GbE LAN |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–28 V |
| Cooling | Fanless |
|---|
| Certifications | RoHS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
