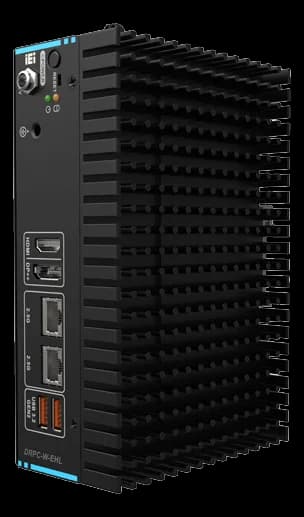

DRPC-W-EHLFanless DIN rail embedded computer with dual video output
- Manufacturer
DRPC-W-EHL is a fanless IEI embedded computer for automation in the electrical panel: black extruded aluminum chassis on DIN rail and CE, FCC and UKCA markings.
The quad-core Celeron J6412 runs from 2 to 2.6 GHz with a 10 W TDP, with 8 GB of on board LPDDR4x (max 16 GB) and a 2.5" SATA bay; the HDMI and DisplayPort video outputs sit alongside two 2.5GbE ports, two USB 3.2 Gen 2 and the optional M.2 slots for Wi-Fi/BT and 5G with SIM, with DC input and a 60 W power supply.
At a glance
- CPU generation: Elkhart Lake
- Processor: Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
- CPU TDP: 10 W
- Memory: 8 GB LPDDR4X 3200 MHz on-board
- RAM type: LPDDR4x
Technical specifications
| CPU generation | Elkhart Lake |
|---|---|
| Processor | Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W) |
| Chipset | SoC |
| CPU TDP | 10 W |
| Memory | 8 GB LPDDR4X 3200 MHz on-board |
|---|---|
| RAM type | LPDDR4x |
| Maximum RAM | 16 GB |
| Storage | 1× 2.5" SATA 6Gb/s HDD/SSD bay1× 2.5" SATA HDD bay(SSD/HDD) |
|---|
| Video outputs | 1× HDMI1× DP(DisplayPort) |
|---|
| Ethernet ports | 2× 2.5 GbE (Intel I225-V/I226-V)2× 2.5 GbE LAN |
|---|---|
| USB ports | 2× USB 3.22× USB 3.2 Gen 2 |
| Other I/O | 1 x Power button, 1 x Reset button, 1 x Power LED, 1 x HDD LED, 1 x System fan connector |
| Expansion | 1× M.2 B-key 3042 (PCIe x2), slot SIM per 5G (opzionale)(optional)1× M.2 A-key 2230 per Wi-Fi & BT (opzionale)(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Power consumption | 30 W |
| Mounting | DIN Rail Mount |
|---|---|
| Dimensions | 176 × 60.8 × 116 mm |
| Weight | 0.92 kg(net) |
| Chassis material | alluminio(extruded) |
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–60 °C |
| Storage temperature | -30–85 °C |
| Certifications | CEUKCAFCC |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
