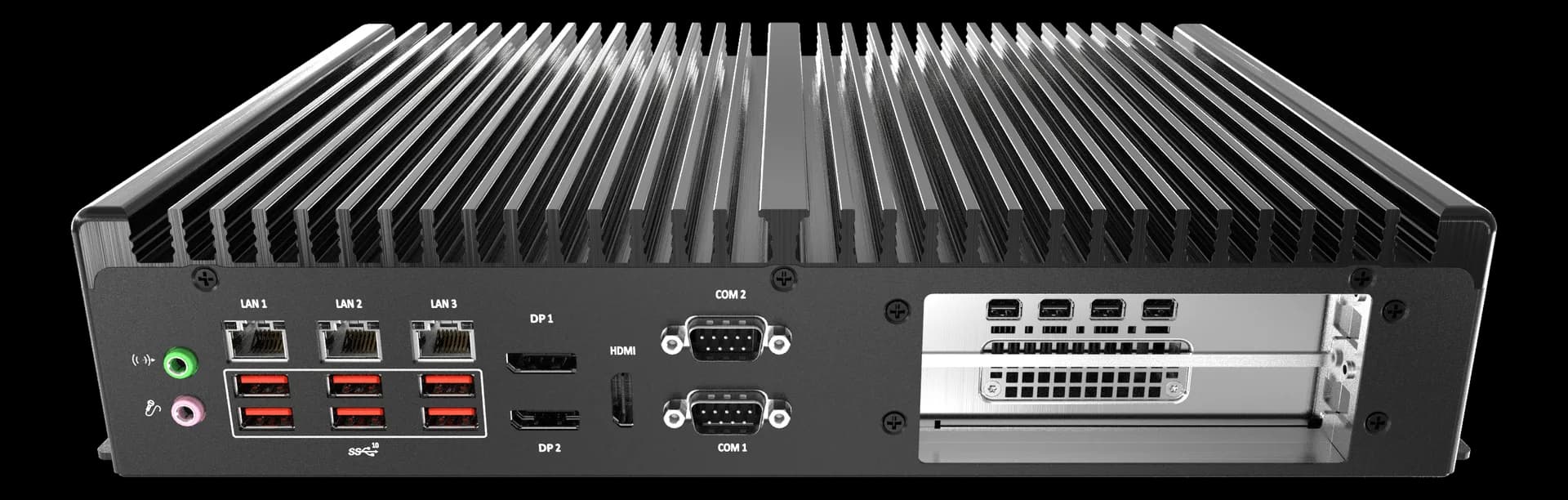

BCO-6000-RPLWall-mount embedded computer with a PCIe slot for NVIDIA RTX GPUs
- Manufacturer
- Configurations
- 2 available configurations
BCO-6000-RPL is an embedded computer for wall mounting in applications that require a dedicated GPU: extruded aluminum chassis of 330 × 69 × 240 mm, operation from 0 to 50 °C, MIL-STD-810G shock and vibration testing and CE, FCC, UL and UKCA certifications.
It accepts 35 W 12th/13th generation Intel Core processors on a Q670E chipset, DDR4 up to 64 GB, an NVMe SSD on M.2 and an optional NVIDIA RTX GPU up to 70 W on a PCIe x16 or dual x8 slot; three 2.5GbE LAN, six USB 3.2 Gen 2, four DB9 serial ports, isolated 8 in / 8 out DIO, TPM 2.0 and a 220 W power supply complete the unit. Variants include BCO-6000-RPL-1E16-Barebone and BCO-6000-RPL-2E8-Barebone.
At a glance
- CPU generation: 12th gen (Alder Lake)
- CPU TDP: 35 W
- Memory: 2× SO-DIMM DDR4 3200 MT/s (default 8 GB, non-ECC) GB
- RAM type: DDR4
- Maximum RAM: 64 GB
Technical specifications
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake)14th gen (Raptor Lake-R) |
|---|---|
| Processor | 12th/13th Gen Intel® Core™ Processor i9/i7/i5/i3, Pentium, Celeron (35W only)(optional) |
| Chipset | Q670E |
| Graphics | NVIDIA RTX A1000 - 8GB GDDR6(optional)NVIDIA RTX 2000 Ada Generation - 16 GB GDDR6 with ECC(optional)NVIDIA RTX PRO 2000 Blackwell - 16GB GDDR7 ECC(optional)RTX 4000 SFF Ada Generation - 20GB GDDR6 ECC(optional)NVIDIA RTX PRO 4000 Blackwell SFF Edition - 24GB GDDR7 ECC(optional)NVIDIA RTX A1000 - 50 W(optional) |
| AI module | Hailo-8(optional) |
| CPU TDP | 35 W |
| Memory | 2× SO-DIMM DDR4 3200 MT/s (default 8 GB, non-ECC) GBDDR4 SO-DIMM 3200 MT/s |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 1× M.2 M-Key (2242/2280), SSD NVMe PCIe x4 Gen 3Support 1x PCIe x1, 1x USB 3.2 Gen 2, 1x USB 2.0, 5G/4G/LTE Module(M.2)1× SSD NVMe PCIe x4 Gen 3 da PCH (default 128 GB)(SSD/HDD)1TB M.2 (opzione ordering)(optional)128GB M.2 (opzione ordering)(optional)2TB M.2 (opzione ordering)(optional)256GB M.2 (opzione ordering)(optional)512GB M.2 (opzione ordering)(optional) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | 2× DisplayPort1× HDMI 1.4b (max 4096×2304 @24Hz)(4096x2304)2× DisplayPort 1.4a Dual-Mode (max 4096×2304 @60Hz)(4096x2304) |
| Ethernet ports | 3× 2.5GbE (RJ45)3× LANIntel® I226V PCIe 2.5GbE LAN |
|---|---|
| USB ports | 6× USB 3.2 Gen 22× USB 2.0 (Type-A)2× USB 3.2 Gen 1 |
| Serial interfaces | 2× COM4× DB9 |
| Audio | Line-out/Mic-inRealtek ALC897 |
| Digital I/O | 16 canali DIO (8× DI + 8× DO), isolate(in)16 canali DIO (8× DI + 8× DO), isolate(out) |
| Other I/O | 5x Antenna Holes, 1x Power button, 1x HD LED, 1x Power LED |
| Wireless | 4G/LTEBluetooth5GWi-Fi |
|---|
| Expansion | 2× PCIe x81x M.2 E-key (2230) Support 1x PCIe x1, 1x USB 2.0; Support CNVi Devices Supported: Intel® AX210 Wi-Fi 6E & BT-5.1 (vPro1× M.2 B-Key (3042, PCIe x1 + USB 3.2 Gen 2 x1 + USB 2.0), Nano SIM, modulo 5G/4G/LTE1x M.2 E key Type: 2230 (Support PCIe x1 + USB 2.0M.2 B-Key per modulo 5G/4G/LTE, opzionale(optional)1× M.2 B-Key (3042, 1× PCIe x1 + 1× USB 3.2 Gen 2 + 1× USB 2.0), 1× Nano SIM, modulo 5G/4G/LTE opzionale(optional · WWAN)2× PCIe x8 o 1× PCIe x16, opzionale (RTX 2000/4000, 70 W)(optional)1× M.2 B-Key (3042)(WWAN) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 330 × 69 × 240 mm |
| Chassis material | alluminio, metallo(extruded) |
| Operating temperature | 0–50 °C |
|---|---|
| Storage temperature | -30–85 °C |
| Certifications | CEFCCULUKCARoHS(3) |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| BCO-6000-RPL-1E16-Barebone |
| BCO-6000-RPL-2E8-Barebone |
