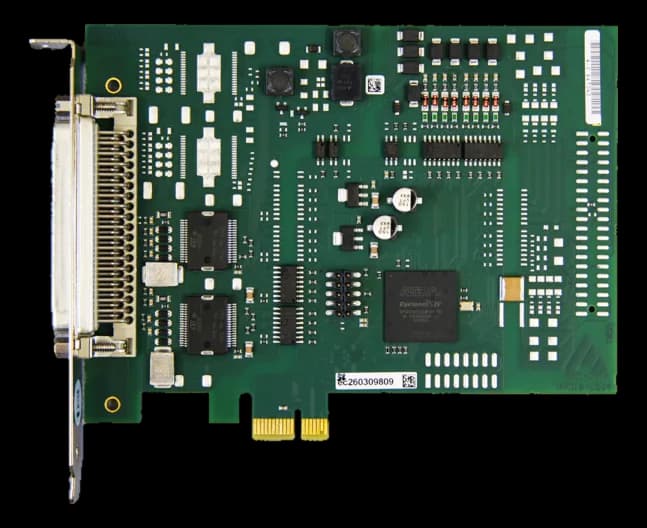

APCIe-1532Isolated PCI Express I/O board with 12-bit resolution
- Manufacturer
APCIe-1532 is an input and output board for a PCI Express slot, meant for acquiring signals and driving actuators from an industrial PC. The printed circuit measures 149 × 99 mm and weighs 0.105 kg.
Galvanic isolation keeps the field side apart from the computer bus, while protection against transient overvoltage guards the inputs. Storage temperature runs from -25 to 70 °C.
At a glance
- Watchdog: Yes
- Channels: 32 channel
- Acquisition specifications: High-side outputs (load to ground, IEC 1131-2)
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
Technical specifications
| Watchdog | Yes |
|---|
| Digital I/O | 16× isolated DI (24 V, 15 interruptible) + 16× isolated DO (high-side, 11–36 V, 500 mA/channel) |
|---|---|
| Connectors | D-Sub(male · front) |
| Channels | 32 channel |
|---|---|
| Counter | 2 timers 12-bit (1–4095 µs/ms/s), 1 usable as watchdog; 1 counter 16-bit (ch 0, up to 100 kHz) |
| Acquisition specifications | High-side outputs (load to ground, IEC 1131-2)24 V inputs: current 6.6 mA (ch 0) / 2 mA (ch 1–15); UH 19–30 V, UL max 14 V(range)RDS ON max 0.2 Ω @25 °C; short circuit/output 1.5 A (pulse, shutdown at 24 V); turn-on 50 µs, turn-off 75 µs(misc) |
| Isolation | Yes |
| Isolation voltage | 1000 V (optoisolatori, PC→periferia)(ch sys) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | PCI Express 1.0a (slot x1/x4) |
| Supply voltage | 11–36 V |
|---|
| Dimensions | 149 × 99 mm |
|---|---|
| Weight | 0.105 kg |
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -25–70 °C |
| Certifications | IEC 61010-1 |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
