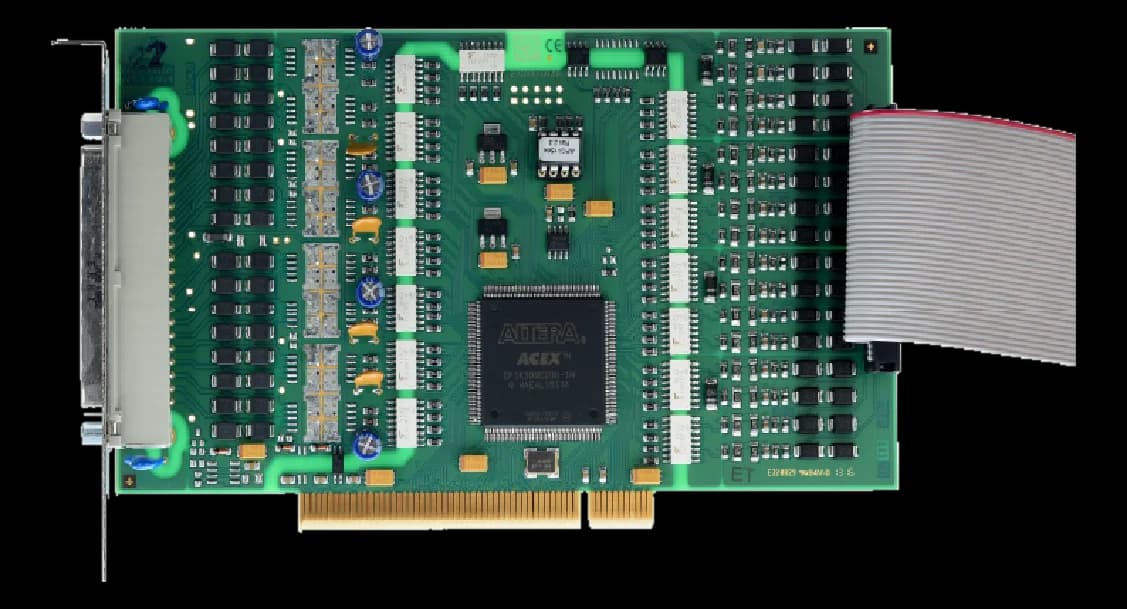

APCIe-1516PCI Express board with 8 digital inputs and 8 outputs
- Manufacturer
The outputs are high-side to IEC 1131-2 and accept an external supply between 11 and 36 V, with 500 mA available per channel and overall current limiting through PTC.
Thermal protection acts at 135 °C on the output driver and a common diagnostic reports the condition to the computer, while the watchdog returns the outputs to rest when the application program stops.
At a glance
- Watchdog: Yes
- Channels: 16 channel
- Acquisition specifications: High-side outputs (load to ground, IEC 1131-2)
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
Technical specifications
| Watchdog | Yes |
|---|
| Digital I/O | 8× isolated DI (24 V) + 8× isolated DO (high-side, 11–36 V, 500 mA/channel) |
|---|---|
| Connectors | D-Sub(male · front) |
| Channels | 16 channel |
|---|---|
| Acquisition specifications | High-side outputs (load to ground, IEC 1131-2)24 V nominal inputs: current 2 mA; UH 19–30 V, UL max 14 V(range)RDS ON max 0.2 Ω @25 °C; short circuit/output 1.5 A (pulse, shutdown at 24 V); turn-on 50 µs, turn-off 75 µs(misc) |
| Isolation | Yes |
| Isolation voltage | 1000 V (optoisolatori, PC→periferia)(ch sys) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | PCI Express 1.0a (slot x1/x4/x8/x16) |
| Supply voltage | 11–36 V |
|---|
| Dimensions | 149 × 99 mm |
|---|---|
| Weight | 0.105 kg |
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -25–70 °C |
| Operating systems | LinuxWindows |
|---|---|
| Driver & SDK | www.addi-data.com/drivers |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
