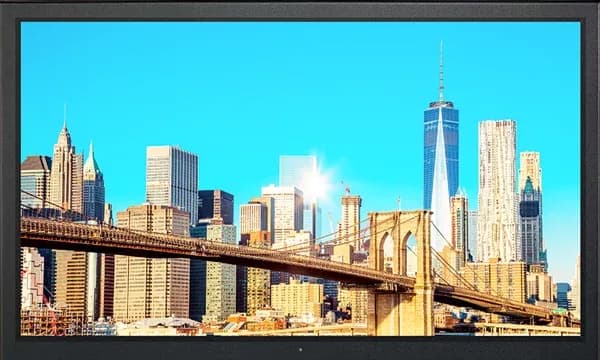

AP-K55Industrial monitor with anti-glare panel and LED backlight
- Manufacturer
- Configurations
- 5 available configurations
AP-K55 is an Austin Hughes industrial LCD monitor for process display and monitoring in production environments. The frame is aluminium with a Dark finish.
The operating altitude reaches 4876.8 m and the storage temperature runs from -20 to 60 °C; the panel pixel pitch is 0.315 mm and the response time 12 ms.
Around the base model there is a family of variants that declines its configuration; an example part number is AP-K55/DC12.
At a glance
- Display size: 55 ″
- Resolution: 3840x2160 4K
- Brightness: 400-599 high cd/m²
- AC/DC input: AC
- Power input: 100–240 V
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 55 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | 400-599 high cd/m² |
| Video inputs | DisplayPort(1.2)DisplayPort(3840x2160)HDMI(1.4)HDMI(2.0) |
| Aspect ratio | 16:9 |
| Contrast ratio | 1200 : 1(typ) |
| Backlight type | LED |
| Response time | 12 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.315 mm |
| Display colors | 1.07 Billion, 10-bit |
| Active area | 1209.6 × 680.4 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 2H |
| Audio | 10W x 2(speaker)3.5mm stereo jack(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 100 W2 W(off)9 W(saving) |
| Mounting | VESA Mount(600x400) |
|---|---|
| Weight | 40 kg50 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | REACHUKCACEFCCWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-K55/DC12 |
| AP-K55/DC125 |
| AP-K55/DC24 |
| AP-K55/DC48 |
| AP-K55/TPC-10 |
