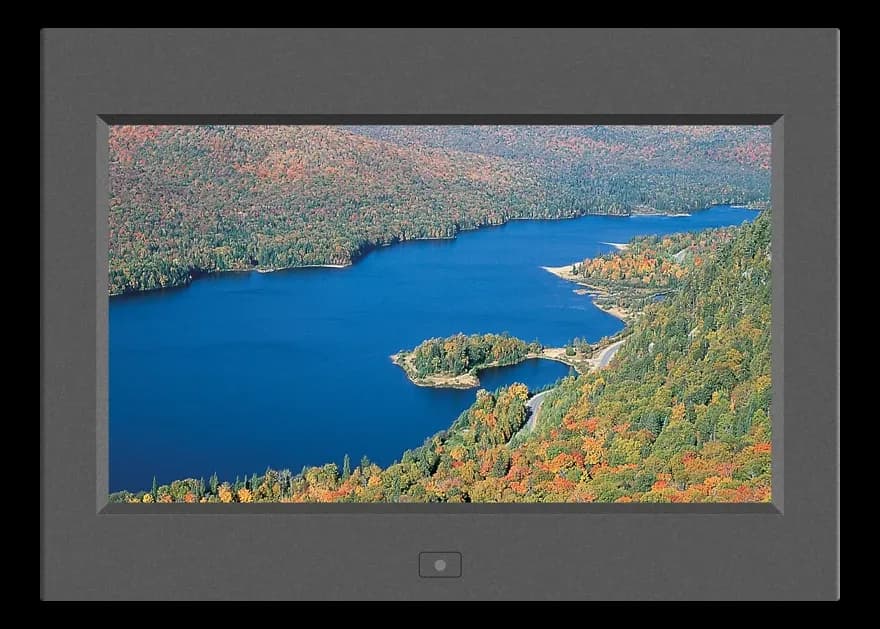

AP-K1313.3" industrial monitor with LED backlight
- Manufacturer
- Configurations
- 6 available configurations
AP-K13 is a compact Austin Hughes industrial monitor for control panels, technical stations and installations where the available space is limited, typically integrated permanently into the station or the panel.
Operation is specified between 0~55 °C; the pixel pitch is 0.0765 mm and the manufacturer declares an MTBF of 15,000 h.
The family counts 6 child configurations; an example is the AP-K13/DC12 variant.
At a glance
- Display size: 13.3 ″
- Resolution: 3840x2160 4K
- AC/DC input: AC
- Power input: 100–240 V
- Power consumption: 30 W
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 13.3 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | Up to 399 standard cd/m²(typ) |
| Video inputs | HDMI(2.0)DisplayPort(1.2)HDMI(1.4) |
| Aspect ratio | 16:9 |
| Contrast ratio | 1500:1(typ) |
| Backlight type | LED |
| Response time | 29 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.0765 mm |
| Display colors | 16.7M, 8-bit |
| Active area | 293.76 × 165.24 mm |
| Surface treatment | Glare (glossy) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack(output)2W x 2(speaker) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 30 W2 W(saving)1 W(off) |
| Mounting | VESA Mount(100x100) |
|---|---|
| Dimensions | 355 × 252.3 × 54.9 mm |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 15000 h |
| Certifications | FCCWEEE (2012/19/UE)REACHUKCACERoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-K13/DC12 |
| AP-K13/DC125 |
| AP-K13/DC24 |
| AP-K13/DC48 |
| AP-K13/TPC10 |
| AP-K13/TRB |
