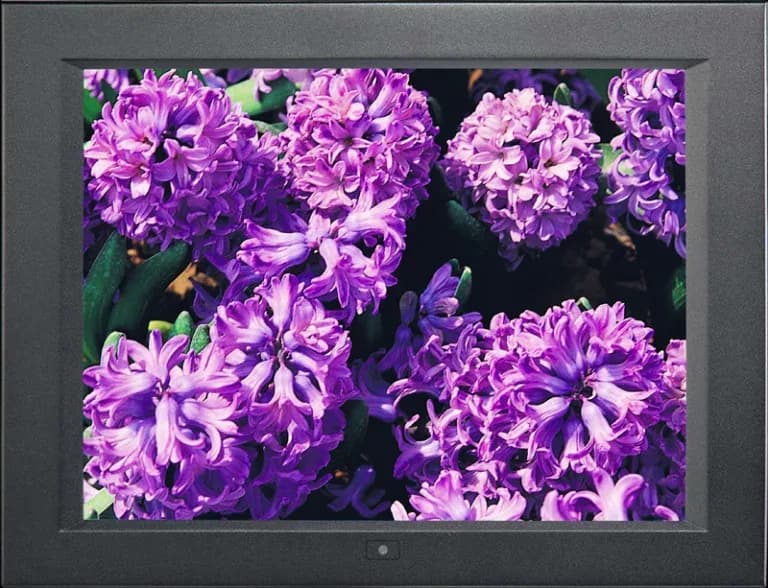

DP-1515" industrial monitor with 350 cd/m² brightness
- Manufacturer
- Configurations
- 13 available configurations
DP-15 is a monitor for automation and operator stations, with DVI, VGA and S-Video video inputs to connect both controllers and analogue sources. The aluminium frame in the Dark finish weighs 4.1 kg.
Depending on the version the backlight is CCFL or LED; the manufacturer declares an MTBF of 50000 h, operation from 0 to 55 °C and an AC input from 100 to 240 V.
The DP-15 family comprises numerous configurations with dedicated part numbers; an example is DP-15/AV2.2H.
At a glance
- Display size: 15 ″
- Resolution: 1024x768 XGA
- Brightness: Up to 399 standard cd/m²
- Video inputs: S-Video
- AC/DC input: AC
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | S-VideoDVIVGAHDMI(1.2)HDMI(optional · 1.2)HDMI(720x480 · 1.2) |
| Aspect ratio | 4:3 |
| Contrast ratio | 800 : 1(typ) |
| Backlight type | LED |
| Response time | 8 ms |
| Viewing angle | 80/80/70/80 |
| Pixel pitch | 0.297 mm |
| Display colors | 16.2 M |
| Active area | 304.128 × 228.096 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 3H |
| Audio | Dual stereo speaker 2W x 23.5mm stereo jack30kΩ / 750mV(input)2ch Linear PCM(DVI input)30kΩ / 2.8V(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V66–160 V(optional)18–36 V(optional)36–75 V(optional)9–18 V(optional) |
| Power consumption | 12 W1 W(off)4 W(saving) |
| Mounting | Wall MountDesktop / StandVESA Mount(100x100) |
|---|---|
| Dimensions | 376 × 282.6 × 54.4 mm |
| Weight | 4.1 kg6.7 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 50000 h |
| Certifications | REACHWEEE (2012/19/UE)CEUKCAFCCRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| DP-15/DC12 |
| DP-15/DC125 |
| DP-15/DC24 |
| DP-15/DC48 |
| DP-15/DV4.4 |
| DP-15/DV4.4/DC12 |
| DP-15/DV4.4/DC125 |
| DP-15/DV4.4/DC24 |
| DP-15/DV4.4/DC48 |
| DP-15/DV4.4/TPC-10 |
| DP-15/DV4.4/TRB |
| DP-15/TPC-10 |
| DP-15/TRB |
