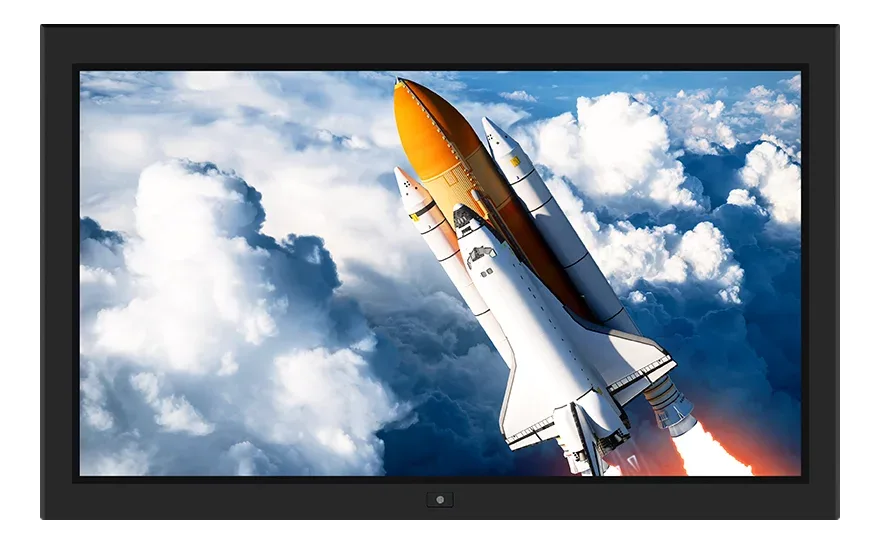

AP-K23Desktop industrial monitor with LED backlight
- Manufacturer
- Configurations
- 6 available configurations
AP-K23 is an Austin Hughes industrial LCD monitor intended for operator stations, control rooms and test benches. The frame is aluminium with a Dark finish.
On the environmental side the manufacturer declares an operating altitude of 4876.8 m and a storage temperature from -20 to 60 °C; the power input is AC.
The model heads a family of variants that decline its configuration; an example part number is AP-K23/DC12.
At a glance
- Display size: 23.8 ″
- Resolution: 3840x2160 4K
- AC/DC input: AC
- Power consumption: 55 W
- Mounting: Desktop / Stand
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 23.8 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | 400-599 high cd/m²(typ) |
| Video inputs | DisplayPort(1.2)DisplayPort(3840x2160)HDMI(2.0)HDMI(1.4)SDI(optional) |
| Aspect ratio | 16:9 |
| Contrast ratio | 1200:1(typ) |
| Backlight type | LED |
| Response time | 14 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.13689 mm |
| Display colors | 1.07 Billion |
| Active area | 525.6576 × 295.704 mm |
| Surface hardness | 2H |
| Audio | 2ch Linear PCM2W x 2(speaker)SMPTE 299M / 272M-C(SDI)3.5mm stereo jack(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power consumption | 55 W1 W(off)2 W(saving) |
| Mounting | Desktop / StandVESA Mount(100x100) |
|---|---|
| Dimensions | 584.2 × 363.6 × 71.8 mm |
| Weight | 9 kg12.7 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | REACHUKCACEFCCWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-K23/DC12 |
| AP-K23/DC125 |
| AP-K23/DC24 |
| AP-K23/DC48 |
| AP-K23/TPC10 |
| AP-K23/TRB |
