AP-K32Industrial monitor for wall mounting with anti-glare treatment
- Manufacturer
- Configurations
- 5 available configurations

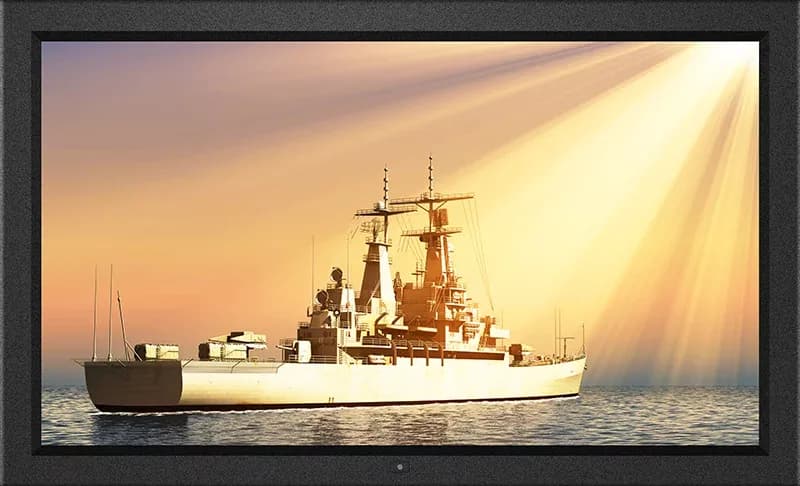

AP-K32 is an Austin Hughes industrial LCD monitor for the display of process data and monitoring in the production area. The panel has LED backlight and the frame is aluminium with a Dark finish.
The manufacturer declares an operating altitude of 4876.8 m, a storage temperature from -20 to 60 °C and a response time of 20 ms.
The family comprises variants that decline its configuration; an example part number is AP-K32/DC12.
At a glance
- Display size: 31.5 ″
- Resolution: 3840x2160 4K
- Brightness: Up to 399 standard cd/m²
- AC/DC input: AC
- Power input: 100–240 V
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 31.5 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | DisplayPort(1.2)DisplayPort(3840x2160)HDMI(2.0)HDMI(1.4) |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 : 1(typ) |
| Backlight type | LED |
| Response time | 20 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.181 mm |
| Display colors | 1.07 Billion, 10-bit |
| Active area | 698.4 × 392.85 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack10W x 2(speaker) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 56 W9 W(saving)2 W(off) |
| Mounting | Wall MountVESA Mount(300x300) |
|---|---|
| Dimensions | 780 × 474 × 88.2 mm |
| Weight | 20.9 kg25.7 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | CEFCCWEEE (2012/19/UE)UKCAREACHRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-K32/DC12 |
| AP-K32/DC125 |
| AP-K32/DC24 |
| AP-K32/DC48 |
| AP-K32/TPC10 |
