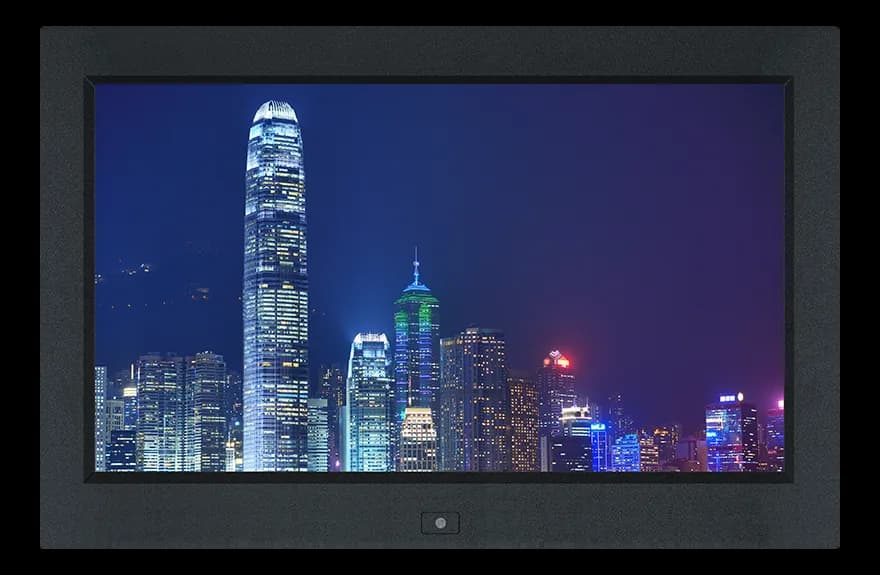

AP-K1515.6" desktop industrial monitor with anti-glare panel
- Manufacturer
- Configurations
- 6 available configurations
AP-K15 is an Austin Hughes industrial monitor for operator stations, technical benches and production environments, intended for daily use alongside working equipment.
Operation is specified between 0~55 °C; the pixel pitch is 0.0897 mm, the manufacturer declares an MTBF of 20,000 h and storage is allowed between -20~60 °C.
The family counts 6 child configurations; an example is the AP-K15/DC12 variant.
At a glance
- Display size: 15.6 ″
- Resolution: 3840x2160 4K
- AC/DC input: AC
- Power input: 100–240 V
- Power consumption: 30 W
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 15.6 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | Up to 399 standard cd/m²(typ) |
| Video inputs | HDMI(1.4)DisplayPort(1.2)HDMI(2.0) |
| Aspect ratio | 16:9 |
| Contrast ratio | 800:1(typ) |
| Backlight type | LED |
| Response time | 30 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.0897 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 344.448 × 193.752 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack2W x 2(speaker) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 30 W2 W(saving)1 W(off) |
| Mounting | Desktop / StandVESA Mount(100x100) |
|---|---|
| Weight | 4.7 kg7.3 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 20000 h |
| Certifications | CEWEEE (2012/19/UE)REACHUKCAFCCRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-K15/DC12 |
| AP-K15/DC125 |
| AP-K15/DC24 |
| AP-K15/DC48 |
| AP-K15/TPC10 |
| AP-K15/TRB |
