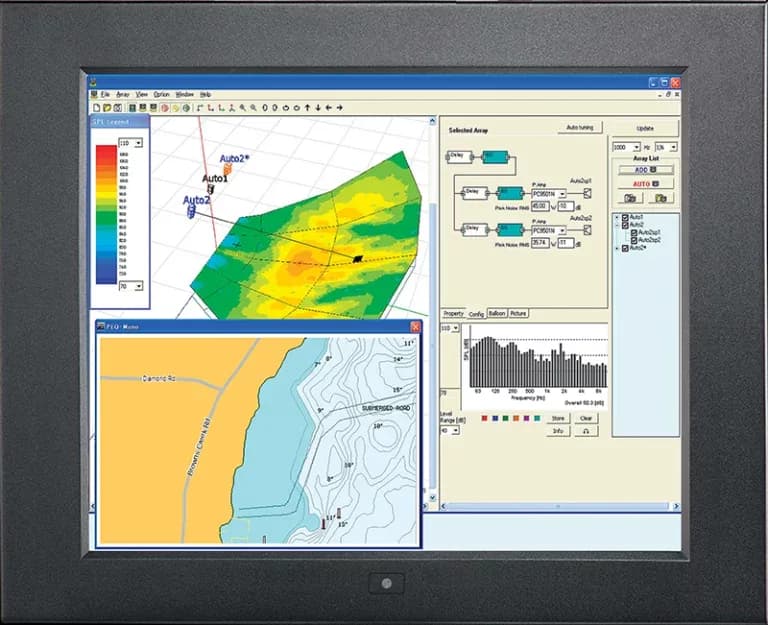

DP-1717" industrial monitor with a 5 ms response time
- Manufacturer
- Configurations
- 20 available configurations
DP-17 is designed for operator stations and supervision environments where digital and analogue signals coexist: the available inputs are DVI, VGA and Composite BNC.
The manufacturer declares an MTBF of 30000 h, operation from 0 to 55 °C and storage from -20 to 60 °C; the aluminium frame in the Dark finish weighs 5.8 kg.
The DP-17 family comprises numerous configurations with dedicated part numbers; an example is DP-17/AV4.4.
At a glance
- Display size: 17 ″
- Resolution: 1280x1024 SXGA
- Brightness: Up to 399 standard cd/m²
- Video inputs: Composite BNC
- AC/DC input: AC
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | Composite BNCDVIVGAHDMI(1.4)HDMI(720x480)HDMI(1280x720) |
| Aspect ratio | 5:4 |
| Contrast ratio | 1000 : 1(typ) |
| Backlight type | LED |
| Response time | 5 ms |
| Viewing angle | 85/85/80/80 |
| Pixel pitch | 0.264 mm |
| Display colors | 16.7 M |
| Active area | 337.92 × 270.33 mm |
| Surface treatment | Anti-glare (AG)(standard)Hard-coating(standard) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack, 30kΩ / 2.8V(output)3.5mm stereo jack, 30kΩ / 750mV(input)Dual Stereo 2W x 2(speaker) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 22 W1 W(off)2 W(saving) |
| Mounting | Desktop / StandVESA Mount(100x100) |
|---|---|
| Dimensions | 408 × 325.6 × 59.5 mm |
| Weight | 5.8 kg8.4 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | REACHWEEE (2012/19/UE)UKCAFCCCERoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| DP-17/BNC |
| DP-17/BNC/DC12 |
| DP-17/BNC/DC125 |
| DP-17/BNC/DC24 |
| DP-17/BNC/DC48 |
| DP-17/BNC/TCB |
| DP-17/BNC/TRB |
| DP-17/DC12 |
| DP-17/DC125 |
| DP-17/DC24 |
| DP-17/DC48 |
| DP-17/DV4.4 |
