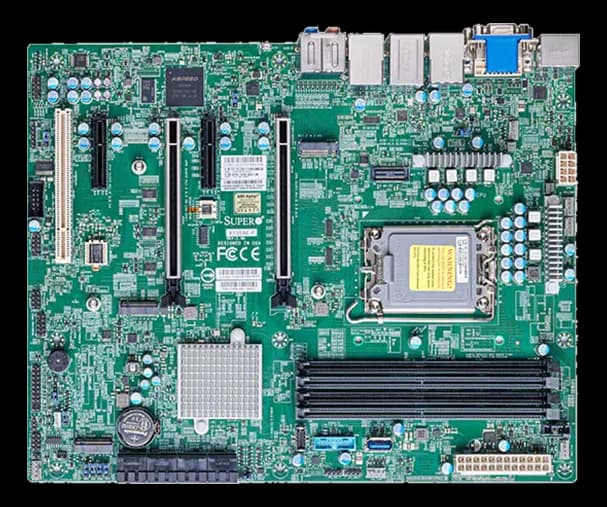

| MBD-X13SAE-F | MBD-X12SCA-F | MBD-X11SCA-F | IMB-M45 | IMB-M43-C236 | IMBA-C2360 | |
| Socket | LGA 1700 | LGA 1200 | LGA 1151 | LGA 1151 | LGA 1151 | LGA 1151 |
| Dimensions | 12” x 9.6” | 12” x 9.6” | 12” x 9.6” | 12” x 9.6” | 12” x 9.6” | 12” x 9.6” |
| CPU | Intel Core i3/i5/i7/i9 (12th/13th) Gen | Intel Xeon W-1200 Intel Core i9/ i7/i5/i3 (10th Gen.) Intel Celeron Intel Pentium |
ntel Xeon E-2100 / E-2200 Intel Core i9/i7/i5/i3 (8th/9th Gen.) Intel Celeron Intel Pentium |
Intel Xeon E3 Intel Core i7/i5/i3 (8th/9th Gen.) Intel Celeron Intel Pentium |
Intel Xeon E3 Intel Core i7/i5/i3 (6th/7th Gen.) Intel Celeron Intel Pentium |
Intel Xeon E3 Intel Core i3 (6th/7th Gen.) Intel Celeron Intel Pentium |
| CPU Preferred | • I7-12700E: 12C, 1.60GHz, 65W • I5-12500E: 6C, 2.90GHz, 65W • I3-12100E: 4C, 3.20GHz, 60W |
• I-i9-10900E-2G8: 10C, 3.3GHz, 65W • I-i9-10900-2G8: 10C, 3.3GHz 65W • I-i7-10700E-2G9: 8C, 2.9GHz 65W • I-i5-10400-2G9: 8C, 2.9GHz 65W |
• E-2278GE: 8C, 3.3GHz, 80W • E-2226GE: 6C, 3.4GHz, 80W • i7-9700E: 8C, 2.6GHz, 65W • i5-9500E: 6C, 3.0GHz, 65W • i3-9100E: 4C, 3.1GHz, 65W |
• E-2278GE: 8C, 3.3GHz, 80W • E-2226GE: 6C, 3.4GHz, 80W • i7-9700E: 8C, 2.6GHz, 65W • i5-9500E: 6C, 3.0GHz, 65W • i3-9100E: 4C, 3.1GHz, 65W |
• E3-1275V5: 4C, 3.6GHz, 80W • E3-1225V5: 4C, 3.3GHz, 80W • E3-1275V6: 4C, 3.80GHz, 73W • E3-1225V6: 4C, 3.30GHz, 73W • i7-7700: 4C 3.6GHz, 65W • i5-7500: 4C 3.4GHz, 65W • i3-7101E: 2C 3.9GHz, 54W • i7-6700: 4C 3.4GHz, 65W • i5-6500: 4C 3.2GHz, 65W • i3-6100: 2C 3.7GHz, 51W |
• E3-1275V5: 4C, 3.6GHz, 80W • E3-1225V5: 4C, 3.3GHz, 80W • E3-1275V6: 4C, 3.80GHz, 73W • E3-1225V6: 4C, 3.30GHz, 73W • i7-7700: 4C 3.6GHz, 65W • i5-7500: 4C 3.4GHz, 65W • i3-7101E: 2C 3.9GHz, 54W • i7-6700: 4C 3.4GHz, 65W • i5-6500: 4C 3.2GHz, 65W • i3-6100: 2C 3.7GHz, 51W |
| Chipset | Intel W680 | Intel W480 | Intel C246 | Intel C246 | Intel C236 | Intel C236 |
| RAM | DDR5-4400MHz 4x DIMM max 128GB Unbuffered ECC/non-ECC UDIMM |
DDR4-2933MHz 4x DIMM max 128GB Unbuffered ECC/non-ECC UDIMM |
DDR4-2666MHz 4x DIMM max 128GB Unbuffered ECC/non-ECC UDIMM |
DDR4-2666MHz 4x DIMM max 128GB w/ECC and non ECC Registered |
DDR4-2133 / 2400MHz 4x DIMM max 64GB w/ECC and non ECC Registered |
DDR4 – 2133MHz 4x DIMM, max 64GB w/ECC and non ECC Registered |
| Graphics | VGA, DVI-D, DP, HDMI | VGA, HDMI, DVI-D, DP | HDMI, DVI-D, DP | VGA, HDMI 1.4, DP 1.2 | VGA, 2 DP | VGA, DVI-D, HDMI, iDP |
| Ethernet | 2 GbE | 2 GbE | 2 GbE | 2 GbE | 2 GbE | 2 GbE |
| SATA Ports | 8x SATA3 600, (support RAID 0,1,5,10) |
4x SATA3 600, (support RAID 0,1,5,10) |
8x SATA3 600, (support RAID 0,1,5,10) |
6x SATA3 600, (support RAID 0,1,5,10) |
6x SATA3 600, (support RAID 0,1,5,10) |
6x SATA3 600, (support RAID 0,1,5,10) |
| M.2 Slots | 3x M.2 M-Key 2280, PCI-E 4.0 x4 |
2x M.2 M-Key 2280/110, PCI-E 3.0 x4 |
2x M.2 M-Key 2242/60/80/110, PCI-E 3.0 x4 |
— | — | — |
| NVME Ports | — | — | 1x U.2 PCIe 3.0 x4 | — | — | — |
| USB | 4x USB 2.0 (2 via header; 2 rear) 3x USB 3.2 Gen1 4x USB 3.2 Gen2 2x USB 3.2 Gen2x2 |
2x USB 2.0 3x USB 3.2 Gen1 5x USB 3.2 Gen2 |
2x USB 2.0 4x USB 3.1 Gen1 4x USB 3.1 Gen2 |
6x USB 3.1 Gen2 6x USB 2.0 |
6x USB 2.0 8x USB 3.0 |
6x USB 2.0 5x USB 3.0 |
| COM | 1x COM Header | 1x COM Header | 1x COM Header | 2x RS-232/422/485 4x RS-232 |
4x RS-232 2x RS-232/422/485 |
4x RS-232 2x RS-422/485 |
| Other | ALC 888S HD Audio | ALC 888S HD Audio | ALC 888S HD Audio | Audio, PS2 combo, LPT, DIO | Audio, PS2, LPT, DIO | Audio, iRIS Remote Management Module |
| Expansion slots | • 2x PCI-E 5.0 x16 slots • 2x PCI-E 3.0 x4 • 1x 5V PCI 32bit |
• 1x PCI-E 3.0 x4, • 2x PCI-E 3.0 x16 slots (16/NA or 8/8) • 1x PCI 32bit |
• 2x PCI-E 3.0 x16 slots (PCI-E Links is NA/16 or 8/8) • 1x PCI-E 3.0 x4 slot (shared w/M.2-M1) • 1x PCI-E 3.0 x1 slot • 1x PCI 32bit |
• 2x PCI-E x8 Gen.3 Or • 1x PCI-E x16 Gen.3 + • 3x PCI-E x4 Gen.3 • 2x PCI Gen.2.2 |
• PEG: PCI-E x16 slot, • PCI: PCI slot, • PEG2: PCI-E x16 slot, • PEG3: PCI-E x4 slot, • PCI-E1: PCI-E x4 slot, PCI-E2: • PCI-E x4 slot, PCI2: PCI slot |
• 2x PCI-E x8 (Gen3), • 2 x PCI • 3x PCI-E x4 (Gen3) |
| I/O shield | 1x DP, 1x HDMI, 1x VGA, 1x DVI-D, IPMI LAN, 2x USB 2.0, 4x USB 3.2, 2x GbE, Audio |
1x DP, 1x HDMI, 1x VGA, 1x DVI-D, IPMI LAN, 6x USB 3.2, 2x GbE, 6x USB 3, Audio |
2x USB 3.1 Gen1 Type A 1x USB 3.1 Gen2 Type A 1x USB 3.1 Gen2 Type C 2x GbE, Audio HDMI, DVI-D, DP, VGA (IPMI) |
4x USB 3.1 Gen2 2x RS-232/422/485 Audio VGA, HDMI 1.4, DP 1.2 2x Gbe |
PS2, 6x USB, 1x VGA, 2x LAN, 2x COM, 2x DP, Audio |
PS2, 6x USB, 1x HDMI, 1x DVI-D, 1x VGA, 2x LAN, Audio |
| OS | WIN-11 64 bit WIN-10 64bit RHEL Linux SLES 15 Ubuntu 20.10 / 22.04 |
• WIN-11 64 bit (w/AOM-TPM-9670) • WIN-10 64bit • WIN-2016 SERV • WIN-2019 SERV • WIN-2022 SERV RHEL • Fedora • OpenSuSE • Ubuntu 20.04 • CentOS |
• WIN-11 64 bit (w/AOM-TPM-9670) • WIN-10 64bit • WIN-2016 SERV • WIN-2019 SERV • WIN-2022 SERV • RHEL • Fedora • OpenSuSE • Ubuntu 20.04 • CentOS |
• WIN-10 64-bit • WIN-2016 server 64-bit • WIN-2019 server 64-bit • Fedora • Ubuntu 18.04 • RHEL • CentOS |
• WIN-7 (only 6th gen.) • WIN-8.1 • WIN-10 • WIN-2008 Server • WIN-2012 Server • WIN-2016 Server • RHEL • Fedora • CentOS • Ubuntu 16.04 |
• WIN-7 (only 6th gen.) • WIN-8.1 • WIN-10 • WIN-2008 Server • WIN-2012 Server • WIN-2016 Server • RHEL • Fedora • CentOS • Ubuntu 16.04 |
| Ordering Information | MBD-X13SAE-F | MBD-X12SCA-F | MBD-X11SCA-F | IMB-M45 | IMB-M43-C236 | IMBA-C2360-i2-R10 |
