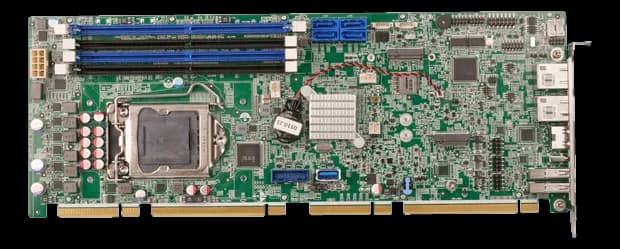

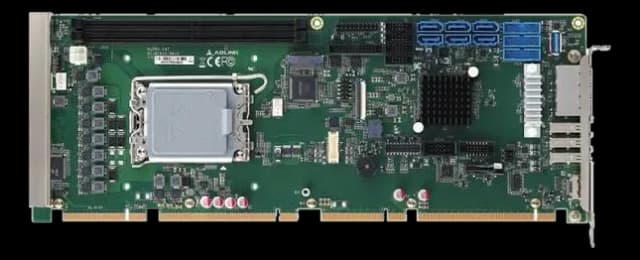

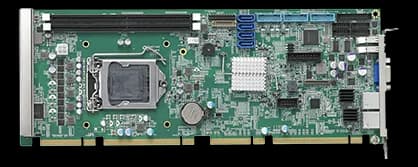

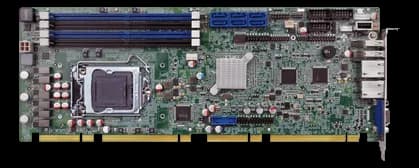

| NUPRO-E47 | PCIE-Q470 | PCIE-Q370 | NuPRO-E43 | NuPRO-E340 *eol: stock available |
|
| Socket | LGA 1700 | LGA 1200 | LGA 1151 | LGA 1151 | LGA 1155 |
| CPU Support | 12th Gen. Intel Core i9/i7/i5/i3 | 10th/11th Gen. Intel Core i9/i7/i5/i3 | 8th/9th Gen. Intel Core i9/i7/i5/i3 | 6th Gen. Intel Core i7/i5/i3 | 3rd Gen. Intel Core i7/i5/i3 |
| CPU Preferred | i9-12900E: 16C 5.0GHz, 65W i9-12900TE: 16C 4.8GHz, 35W i7-12700E: 12C 4.8GHz, 65W i7-12700TE: 12C 4.7GHz, 35W i5-12500E: 6C 4.5GHz, 65W i5-12500TE: 6C 4.3GHz, 35W i3-12100E: 4C 4.2GHz, 60W i3-12100TE: 4C 4.0GHz, 35W |
i9-10900E: 10C, 2.8GHz, 65W i7-10700E: 8C, 2.9GHz, 65W i5-10500E: 6C, 3.1GHz, 65W i3-10100E: 4C, 3.6GHz, 65W |
i9-9700: 6C 3.20 GHz, 65W i7-8700: 6C 3.20 GHz, 65W i5-8500: 6C 3.00 GHz, 65W i3-8100: 4C 3.60 GHz, 65W |
i7-7700: 4C 3.6GHz, 65W i5-7500: 4C 3.4GHz, 65W i3-7101E: 2C 3.9GHz, 54W i7-6700: 4C 3.4GHz, 65W i5-6500: 4C 3.2GHz, 65W i3-6100: 2C 3.7GHz, 51W |
i7-3770: 4C 3.4 GHz, 77W i5-3550S: 4C 3.0 GHz , 65W i3-3220: 2C 3.30 GHz, 55W i3-2120: 2C 3.3 GHz, 65W |
| Chipset | Intel Q670E | Intel Q470 | Intel Q370 | Intel Q170 | Intel Q67 |
| RAM | DDR5 – 4800, 2 x DIMM, max. 64GB | DDR4 – 2933, 4 x DIMM, max. 128GB | DDR4 – 2666, 4 x DIMM, max. 64GB | DDR4 – 2133, 2 x DIMM, max.32GB | DDR3 – 1333, 2 x DIMM, max. 8GB |
| Graphics |
VGA (up to 1920 x 1200@60Hz) |
HDMI (up to 4096 x 2160@30Hz) |
DP (up to 4096 x 2304) VGA (1920 x 1080) |
VGA (1920 x 1200) DVI-D (1920 x 1200) |
VGA (2048 x 1536) DVI-D |
| Ethernet | 2 GbE | 2,5 GbE | 2 GbE | 2 GbE | 2 GbE |
| SATA ports | 6x SATA3 (support RAID 0,1,5,10) | 4x SATA3 (support RAID 0,1,5,10) | 6x SATA 600 (support RAID 0,1,5,10) | 4x SATA 600 (support RAID 0, 1, 5, 10) | 2x SATA 600 / 4 x SATA 300 (support RAID 0, 1, 5, 10) |
| M.2 slots | 1x M.2 M Key 2280 with PCI-E Gen4 x4 | 1x M.2 A Key 2230 w/PCI-E x2/USB 2.0 1x M.2 B Key 3042/3052/2242/2280 w/SIM holder with PCI-E Gen3 x2 1x M.2 M Key 2280/2242 with PCI-E x4 |
– | – | – |
| USB | 3x USB 3.2 Gen 2×1 (10Gbps) on rear I/O 6x USB 3.2 Gen 1×1 via onboard box headers 1x USB 3.2 Gen 1×1 vertical type A 4x USB 2.0 to backplane |
6x USB 2.0 6x USB 3.2 |
7x USB 2.0 4x USB 3.2 |
4x USB 2.0 / 8x USB 3.0 | 12x USB 2.0 2x USB 3.0 |
| COM | 2x RS-232 2x RS-232/422/485 |
2x RS-232 2x RS-422 / 485 |
3x RS-232 1x RS-422 / 485 |
2 x RS232 2 x RS232/422/485 |
5 x RS-232 1 x RS-232/422/485 |
| KB/MS | – | – | 1 x 16 pin | 1 x pin header for PS/2 | 1 x pin header for PS/2 |
| Other | Audio | Audio | Audio | Audio, LPT | Audio, LPT |
| I/O Bracket | 1x HDMI, 2x LAN, 3x USB 3.2 | 1x HDMI , 2x LAN, 2x USB 3.2, 1x USB 3.2 Type C |
2 x USB 3.2, 1 x VGA, 2 x LAN | 2 x LAN, 1 x VGA, 2 x USB | 2 x LAN, 1 x VGA, 2 x USB |
| OS | WIN-11 64-bit / WIN-10 64-bit / Ubuntu 15.10 | WIN-11 64-bit (with TPM-IN03-R10 module) / WIN-10 64-bit / WIN-2016 server 64-bit / WIN-2019 server 64-bit / WIN-2022 server 64-bit / Fedora / Ubuntu 20.04 LTS 64-bit | Windows XP Pro 32/64bit / Windows 7 Pro 32/64bit / Windows 8.1 / Windows 10 IoT Enterprise 2016 / Windows 11 IoT Enterprise Windows Server 2003 / Windows Server 2008 R2 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019 / Windows Server 2022 / Linux |
Windows XP Pro 32/64bit / Windows 7 Pro 32/64bit / Windows 8.1 / Windows 10 IoT Enterprise 2016 / Windows 11 IoT Enterprise Windows Server 2003 / Windows Server 2008 R2 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019 / Windows Server 2022 / Linux |
Windows XP Pro 32/64bit / Windows 7 Pro 32/64bit / Windows 8.1 / Windows 10 IoT Enterprise 2016 / Windows 11 IoT Enterprise Windows Server 2003 / Windows Server 2008 R2 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019 / Windows Server 2022 / Linux |
| Ordering Information | NUPRO-E47 | PCIE-Q470 | PCIE-Q370 | NuPRO-E43 | NuPRO-E340 |
EBP-D3E1
1 x PICMG CPU
1 x PCI-E x4
1 x PCI-E x4
GO-3004
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-E x4
1 x PCI-E x16
1 x PCI-E x4
EBP-D5E2
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-E x4
2 x PCI
1 x PCI-E x16
1 x PCI-E x4
2 x PCI
NBP 2U040
1 x PICMG CPU
4 x PCI
4 x PCI
PBPE-06V3
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-E x8 (x4 signal)
3 x PCI
1 x PCI-E x16
1 x PCI-E x8 (x4 signal)
3 x PCI
GO-N2UP5
1 x PICMG CPU
1 x PCI-E x1
1 x PCI-E x16
2 x PCI
1 x PCI-E x1
1 x PCI-E x16
2 x PCI
EBP-5E1
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-X
2 x PCI
1 x PCI-E x16
1 x PCI-X
2 x PCI
PBPE-05A364
1 x PICMG CPU
1 x PCI-E x16
2 x PCI-X
1 x PCI
1 x PCI-E x16
2 x PCI-X
1 x PCI
EBP-6E2
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-E x4
3 x PCI
1 x PCI-E x16
1 x PCI-E x4
3 x PCI
PBPE-06P3
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-E x4
3 x PCI
1 x PCI-E x16
1 x PCI-E x4
3 x PCI
PBPE-06P4
1 x PICMG CPU
1 x PCI-E x8 (x4 signal)
4 x PCI
1 x PCI-E x8 (x4 signal)
4 x PCI
EBP-7E2
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-E x4
4 x PCI
1 x PCI-E x16
1 x PCI-E x4
4 x PCI
PBPE-08P41
1 x PICMG CPU
2 x PCI-E x16 (x8 signal)
1 x PCI-E x8 (x4 signal)
4 x PCI
2 x PCI-E x16 (x8 signal)
1 x PCI-E x8 (x4 signal)
4 x PCI
EBP-9E2
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-E x4
6 x PCI
1 x PCI-E x16
1 x PCI-E x4
6 x PCI
EBP-9E5
1 x PICMG CPU
1 x PCI-E x16
4 x PCI-E x1
3 x PCI
1 x PCI-E x16
4 x PCI-E x1
3 x PCI
EBP-10E5
1 x PICMG CPU
1 x PCI-E x16
4 x PCI-E x1
4 x PCI
1 x PCI-E x16
4 x PCI-E x1
4 x PCI
PBPE-11A3
1 x PCI-E x16 (GEN3)
2 x PCI-E x16 (x8 signal GEN3)
4 x PCI-E x8 (x1 signal)
3 x PCI-E
2 x PCI-E x16 (x8 signal GEN3)
4 x PCI-E x8 (x1 signal)
3 x PCI-E
PBPE-12P4
1 x PCI-E x16 (x8 signal GEN3)
2 x PCI-E x8 (x4 signal)
4 x PCI-E x4 (x1 signal)
4 x PCI
2 x PCI-E x8 (x4 signal)
4 x PCI-E x4 (x1 signal)
4 x PCI
EBP-13E2
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-E x4
10 x PCI
1 x PCI-E x16
1 x PCI-E x4
10 x PCI
EBP-13E4
1 x PICMG CPU
1 x PCI-E x16
3 x PCI-E x4
7 x PCI
1 x PCI-E x16
3 x PCI-E x4
7 x PCI
WBP-13E4
1 x PICMG CPU
1 x PCI-E x16 (x8 signal)
3 x PCI-E x4
8 x PCI
1 x PCI-E x16 (x8 signal)
3 x PCI-E x4
8 x PCI
PBPE-12A9
1 x PICMG CPU
1 x PCI-E x16
1 x PCI-E x8 (x4 signal)
9 x PCI
1 x PCI-E x16
1 x PCI-E x8 (x4 signal)
9 x PCI
PBPE-12AA64
1 x PICMG CPU
1 x PCI-E x16
8 x PCI-X
2 x PCI
1 x PCI-E x16
8 x PCI-X
2 x PCI
