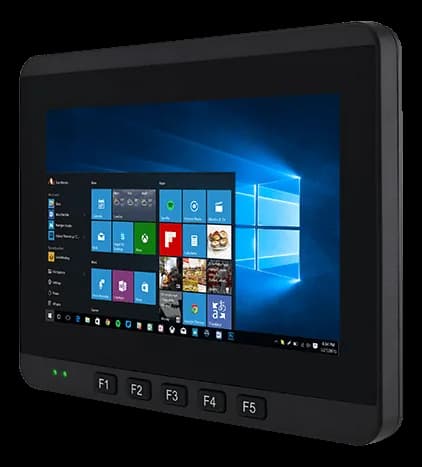

FM077" fanless Panel PC with 1000 cd/m² display and wide power range
- Manufacturer
FM07 is a 7" industrial Panel PC with a capacitive touchscreen, designed for use in demanding environments and on vehicles. The fanless construction and the IP65 protection rating make it suited to contexts with dust and liquids, with an operating temperature range from -20 to 60 °C.
The elements that distinguish it are the 1000 cd/m² display, readable under strong lighting, and the wide 9~36 V power range, compatible with onboard systems. The E-Mark certification confirms its suitability for vehicle use, with integrated 4G/LTE and GPS/GNSS connectivity.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU frequency: 1.1–2.5 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
- Storage: 1× M.2 2242 SSD 128GB
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz)(optional) |
| CPU frequency | 1.1–2.5 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB8GB GB(optional) |
|---|
| Storage | 1× M.2 2242 SSD 128GB |
|---|
| Display size | 7 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | 1000+ sunlight cd/m² |
| Resolution | 1024x600 |
| Contrast ratio | 800:1 |
| Viewing angle | 85,85,85,85 |
| Active area | 152.2144 × 85.92 mm |
| OSD controls | 5 x Function Key |
| Ethernet ports | 1× GbE 10/100/1000 Mbps (M12)1× Intel Ethernet Controller |
|---|---|
| USB ports | 2 x USB for DB9 |
| Serial interfaces | 1× RS-232/422/485 (default RS-232) |
| Audio | 1× speaker |
| Digital I/O | DIDO (5 DI / 3 DO)(out)DIDO (5 DI / 3 DO)(in) |
| Other I/O | 1 x Power Button · 5x Function Button (Programmable Function Key Configured by Winset) |
| Wireless | 4G/LTEGPS/GNSS |
|---|
| Power input | 9–36 V |
|---|---|
| Power consumption | 35 W |
| Weight | 1.25 kg |
|---|
| IP rating | IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | CEE-MarkFCC |
|---|
| Operating systems | LinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
