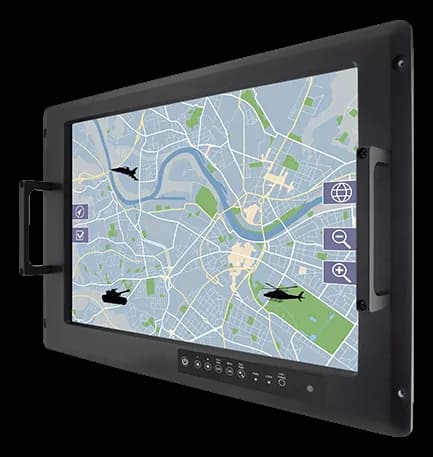

W24IB3S-RKS1ML24" rugged panel PC with rack or VESA mounting
- Manufacturer
W24IB3S-RKS1ML is a Winmate rugged panel PC for control rooms and plant HMI stations, with a fanless aluminum and metal chassis meant for continuous operation.
The features that set it apart are the operating range from 0 to 50 °C, with humidity from 10 to 95% and storage from -10 to 60 °C, and electromagnetic compatibility tested to MIL-STD-461. The display contrast ratio is 1000.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- RAM type: DDR3L
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 4GB (Default) GB(DDR3L · 1600 MHz)8GB GB(DDR3L · optional · 1600 MHz) |
|---|---|
| RAM type | DDR3L |
| Storage | 1× mSATA SSD 128GB (Default)512GB(optional · mSATA)256GB(optional · mSATA) |
|---|
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Viewing angle | 89,89,89,89 |
| Active area | 518.4 × 324.0 mm |
| Video outputs | 1× HDMI(optional) |
| Ethernet ports | 2× RJ452× Intel® Ethernet Controller |
|---|---|
| USB ports | 1× USB2.01× USB3.0 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| AC/DC input | AC+DC |
|---|
| Mounting | VESA MountRack Mount |
|---|---|
| Dimensions | 609.5 × 399.3 × 76.2 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | MIL-STD-810FCCCEMIL-STD-461 |
|---|
| Operating systems | Windows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
