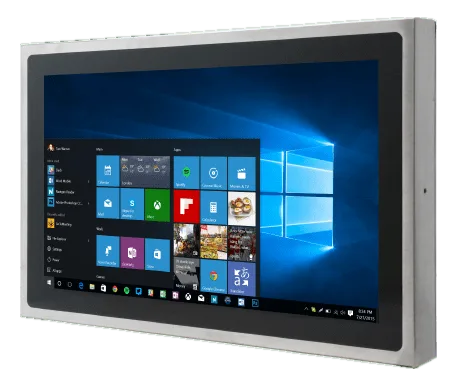

W24IB3S-SPA26924" fanless industrial panel PC with a stainless steel chassis
- Manufacturer
W24IB3S-SPA269 is an industrial panel PC with a 24" display and a brightness of 250 cd/m², intended for HMI applications and operator stations in industrial settings. VESA mounting and the dual Ethernet port allow it to be integrated in lines and control cabinets.
The stainless steel chassis and fanless cooling remove the moving parts and favor installation in environments subject to dust or washdowns. The contrast ratio is 3000:1, with a storage temperature between -20 and 60 °C.
At a glance
- CPU class: Intel Celeron/Pentium
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- Memory: 4GB(Default) (Default) 8GB (Optional) GB
- Display size: 24 ″
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 4GB(Default) (Default) 8GB (Optional) GB8GB GB(optional) |
|---|
| Storage | 128GB SSD(Default) (Default) 256GB SSD (Optional) 512GB SSD (Optional)(SSD/HDD)256GB SSD(optional · SSD/HDD)512GB SSD(optional · SSD/HDD) |
|---|
| Display size | 24 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1920x1080 FHD |
| Contrast ratio | 3000:1 |
| Viewing angle | 89,89,89,89 |
| Active area | 527.04 × 296.46 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Optical bonding | Yes(optional) |
| Ethernet ports | 2× Intel Ethernet Controller1× GbE (RJ45), waterproof |
|---|---|
| USB ports | 2× USB 2.01x M12 Waterproof Connector for |
| Serial interfaces | 1× RS-232 (M12), waterproof |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA MountYoke Mount(optional) |
|---|---|
| Chassis material | acciaio inox |
| Cooling | Fanless |
|---|---|
| Storage temperature | -20–60 °C |
| Certifications | FCCCE |
|---|
| Operating systems | Windows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
